Generali Tower Zaha Hadid Architects
2018-04-25 11:00
ZHA项目建筑师Andrea Balducci种姓ZHA工地监督小组Pierandrea Angius,Vincenzo Barilari,Stefano Paiocchi ZHA项目组Shahd Abdelmoneim,Santiago F.Achury,Marco Amoroso,Agata Banaszek,Gianluca Barone,Cristina Capanna,Alessandra Catello,Sara Criscenti,Kyle Dunnington,Alexandra Fisher,H.Goswin Rothal,Marco Gudincerri,Subharthi Guha,Marco ano Letterello,Carles S.Martinez,Marina Martinez,Mario Mattia,Peter McCarthy,Giuseppe Morando,Massimo Naboni,Raquel Ordas,Annarita Papeschi,Massiiano Piccinini,Matteo Pierotti,Line Rahbek,Martha Read,Arianna Russo,Luis Miguel Samanez,Mattia Santi,Letiia Simoni,Alvin Triestanto,Roberto Vangeli,Fulvio Wirz ZHA竞赛队Daniel Baerlecken,Yael Brosilovski,Ana Cajiao,Tiago Correia,阿德里亚诺德乔安尼斯,杨静文,金西蒙,李彦宏,格雷厄姆莫德伦,卡里姆穆阿莱姆,朱迪思雷茨执行建筑师和项目协调计划管理J和A/Ramboll结构AKT,Redesco,Holzner和Bertagnolli工程帽,AIACE-Soc。英机械/电气MAX Fordham Manens-tifs,Deerns监视和评估Max Fordham Manens-建筑规范-Fa ade ARUP电梯JAPPsen Ingenieure Fire GAE工程,Mistretta Acoustics Cole Jarman,ENC srl TransportSystematica,Sudio Corda,Alpina承包商CMB Cooperativa Muratori e Bracciantidi Carpi项目经理Claudio Guido-In.Pro站点主管Marco Cruciani,Tommaso Salvo,Alfio Musumec
ZHA Project Director Gianluca Racana ZHA Project Associate Paolo Zilli ZHA Project Architect Andrea Balducci Caste ZHA Site Supervision Team Pierandrea Angius, Vincenzo Barilari, Stefano Paiocchi ZHA Project Team Shahd Abdelmoneim, Santiago F. Achury, Marco Amoroso, Agata Banaszek, Gianluca Barone, Cristina Capanna, Alessandra Catello, Sara Criscenti, Kyle Dunnington, Alexandra Fisher, H. Goswin Rothenthal, Marco Guardincerri, Subharthi Guha, Luciano Letteriello, Carles S. Martinez, Marina Martinez, Mario Mattia, Peter McCarthy, Giuseppe Morando, Massimo Napoleoni, Raquel Ordas, Annarita Papeschi, Massimiliano Piccinini, Matteo Pierotti, Line Rahbek, Martha Read, Arianna Russo, Luis Miguel Samanez, Mattia Santi, Letizia Simoni, Alvin Triestanto, Roberto Vangeli, Fulvio Wirz ZHA Competition Team Daniel Baerlecken, Yael Brosilovski, Ana Cajiao, Tiago Correia, Adriano De Gioannis, Yang Jingwen, Simon Kim, Daniel Li, Graham Modlen, Karim Muallem, Judith Reitz Executive Architect and Project Coordination Planimetro Management J and A/Ramboll Structure AKT, Redesco, Holzner and Bertagnolli Engineering + Cap, AIACE – Soc. Ing. Mechanical / Electrical Max Fordham + Manens-TIFS, Deerns Monitoring and Evaluation Max Fordham + Manens-TIFS Specifications Building Counsulting Façade ARUP Elevator Jappsen Ingenieure Fire GAE Engineering, Mistretta Acoustics Cole Jarman, ENC srl Transport Systematica, Sudio Corda, Alpina Contractor CMB Cooperativa Muratori e Braccianti di Carpi Project Manager Claudio Guido – In.Pro Site Supervisor Marco Cruciani, Tommaso Salvo, Alfio Musumec More Specs Less Specs

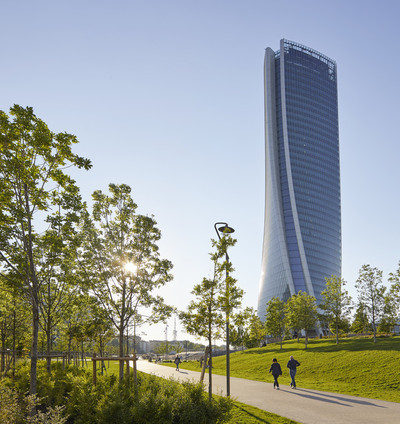

© Hufton + Crow
赫夫顿乌鸦
架构师提供的文本描述。杰纳利大厦是城市生活总体计划的一部分,在2005年博览会搬迁到Rho Pero之后,该计划重新开发了米兰废弃的贸易博览会场地。
Text description provided by the architects. Generali Tower is within the CityLife masterplan that has redeveloped Milan’s abandoned trade fair grounds following the fair’s relocation to Rho Pero in 2005.
CityLife Site Plan
城市生活用地规划
位于城市地铁5号线Tre Torri站之上,CityLife第一次开放了这个占地90英亩的场地,供全年使用;除了购物区和公司办公室外,还提供了新的城市空间、公共公园和住宅区。
Located above the new Tre Torri station on Line 5 of the city’s metro system, CityLife opens the 90-acre site to year-round public use for the first time; providing new civic spaces, public parks and residential areas, in addition to shopping districts and corporate offices.

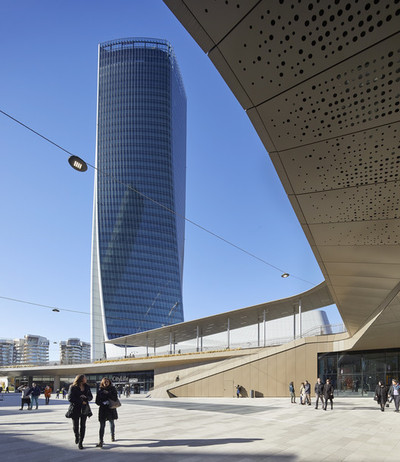

© Hufton + Crow
赫夫顿乌鸦
到2020年全面建成后,“城市生活”将成为自Parco Sempione于130年前开放以来在该市创建的最大的新的城市空间和公共公园,每年将接待700多万游客、工人和居民。
When fully complete in 2020, CityLife will be the largest new civic space and public park created in the city since Parco Sempione opened 130 years ago; welcoming more than seven million visitors, workers and residents each year.
CityLife City Connections
城市生活城市联系
“城市生活”将包括1,000套新住宅、11,000多名员工的办公室、42英亩的新公共公园、广场和幼儿园。
CityLife will include 1,000 new homes, offices for more than 11,000 staff, the new 42-acre public park, piazzas and kindergarten.

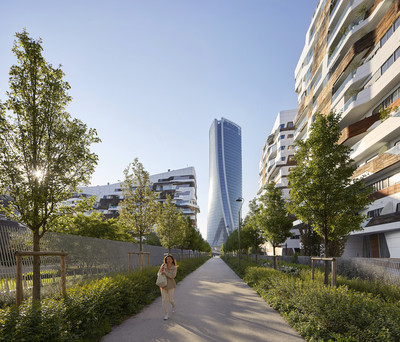

© Hufton + Crow
赫夫顿乌鸦
这座170米(44层)的总塔与其周围的公共广场和公园连接在一起,在地面上与城市生活中的三条主要轴线对齐;其平台的曲线几何图形是由这三座城市轴线在塔底交错相交所产生的向心力所定义的。
Aligned at ground level with three of the city’s primary axes that converge within CityLife, the 170m (44-storey) Generali Tower connects with its surrounding public piazzas and park; the curvilinear geometries of its podium defined by the perceived centripetal forces generated from the staggered intersection of these three city axes at the tower’s base.

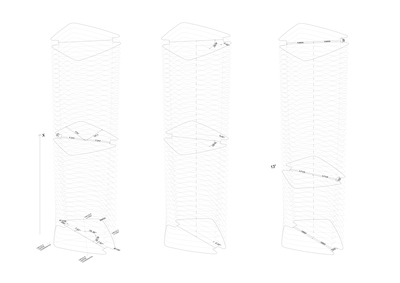

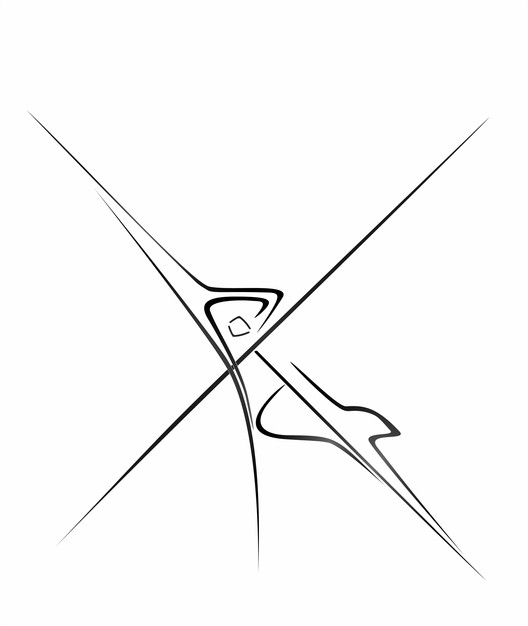

Staggered Intersection Sketch
交错交叉口素描

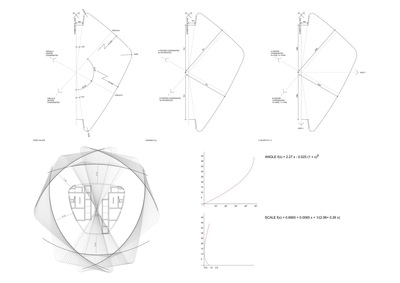

这种地面向心力的漩涡通过对连续菱形楼板的重新对齐,使塔绕其垂直轴旋转而垂直地通过塔体传递。这种螺旋扭转逐渐减少,每层的高度以上的街道水平,使所有楼层有一个轻微不同的关系,地板上和下面。
This vortex of centripetal forces at ground level is transferred vertically through the tower by realigning successive rhomboid-shaped floor plates to twist the tower about its vertical axis. This helical twist reduces incrementally with the height of each floor above street level, giving all floors a fractionally different relationship to the floors above and below.
© Hufton + Crow
赫夫顿乌鸦
当这座塔耸立时,整个米兰都能看到更广阔的景致。它将塔楼的较高楼层指向主东南轴线,通向布拉曼特15世纪圣玛丽亚·德拉·格拉齐论坛报,并延伸至市中心。
As the tower rises offering broader views across Milan, the twist orientates the tower's higher floors to the primary southeast axis leading to Bramante’s 15th Century tribune of Santa Maria della Grazie, and beyond to the centre of the city.

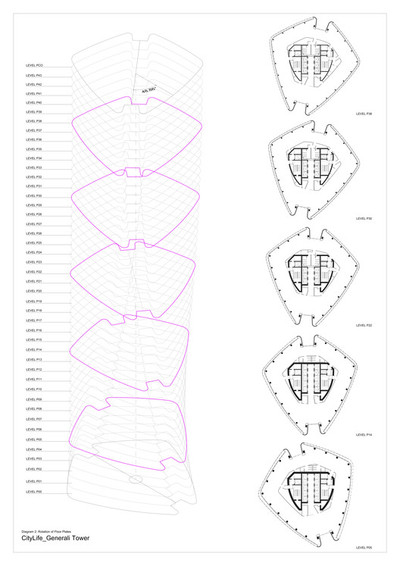

Rotation Floors
旋转地板
由于其内部将于今年夏天完成,通用大厦将容纳多达3900名员工,以满足他们作为世界上最大的金融机构之一的持续增长。
With its interiors to be completed this summer, Generali Tower will house up to 3,900 employees to meet their continued growth as one of the world’s largest financial institutions.
© Hufton + Crow
赫夫顿乌鸦
这座塔在尊重米兰严格的当地建筑规范的同时,在所有国际效率基准方面都表现出色。它的双立面太阳偏转百叶窗两侧的玻璃提供了极为有效的环境控制,并确保优良的能源性能,为美国绿色建筑委员会的LEED白金认证。
The tower excels in all international benchmarks for efficiency while respecting Milan’s rigorous local building codes. Its double-façade of sun-deflecting louvers flanked by glazing provides extremely efficient environmental control for each floor and ensures excellent energy performance, contributing to Generali Tower’s LEED Platinum certification by the US Green Building Council.

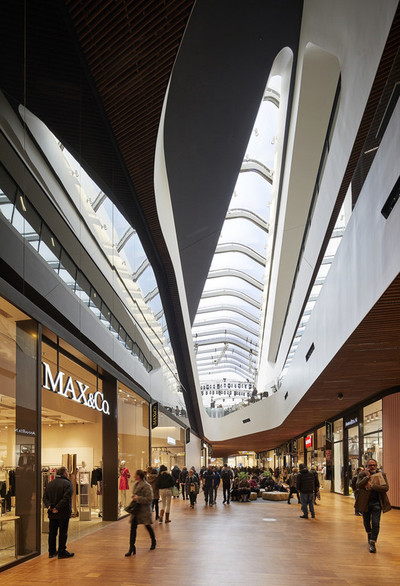

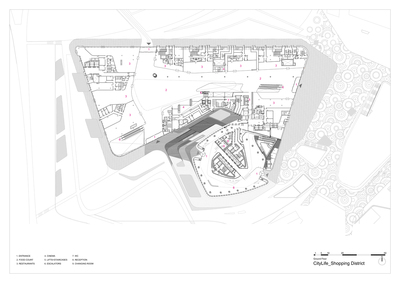

Tower connection with Shopping Distirct
塔楼与购物中心的连接

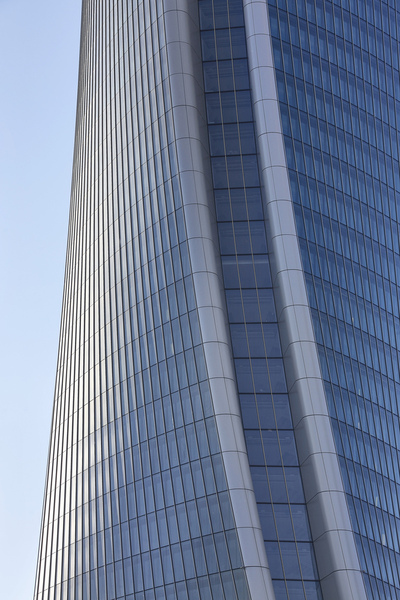

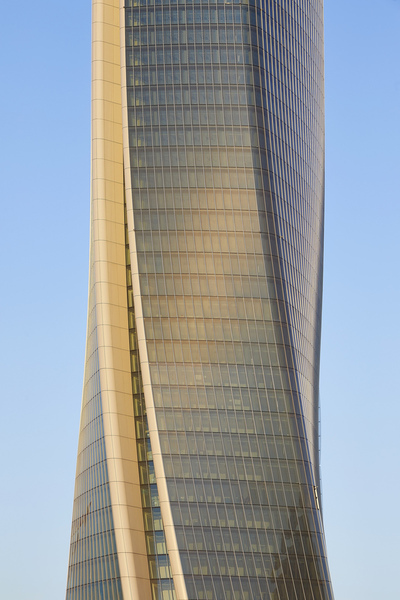

倾斜的周边柱遵循塔的扭曲几何学,以反映其外部外观单位的倾斜对齐。这些周边柱还最大限度地利用了塔内协调一致的正式信封内的可用办公空间。
Inclined perimeter columns follow the twisting geometry of the tower to mirror the inclined alignment of its external façade units. These perimeter columns also maximise usable office space within the tower’s coherent formal envelope.
© Hufton + Crow
赫夫顿乌鸦

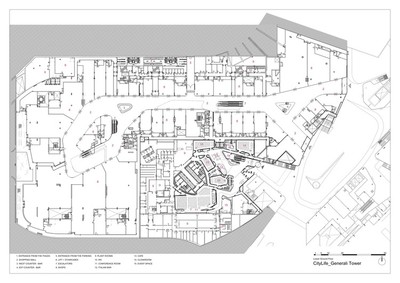

Lower Floor Plan
低层平面图
© Hufton + Crow
赫夫顿乌鸦
城市生活重建计划的一个组成部分是在米兰市中心附近建立了一个新的城市、住宅和商业区,由其周围的城市结构定义,与城市直接相连。
An integral element of the CityLife redevelopment that has created a new civic, residential and business district near the centre of Milan, Generali Tower is defined by its surrounding urban fabric to connect directly with the city.
© Hufton + Crow
赫夫顿乌鸦
Architects Zaha Hadid Architects
Location CityLife, 20145 Milano MI, Italy
Design Zaha Hadid, Patrik Schumacher
Area 147429.0 m2
Project Year 2018
Photographs Hufton + Crow, Luke Hayes
Category Office Buildings
Manufacturers Loading...
