Swoon Art House Tres birds workshop

2018-04-27 09:00
架构师提供的文本描述。统一、完整、无限:圆圈在古代和现代文化中具有特殊的意义,象征着无始无终的事物。它是永恒的。
Text description provided by the architects. Unity, wholeness, infinite: the circle holds particular significance in ancient and modern culture, symbolizing that which is without a beginning or an end. It is eternal.
 © James Florio
c.James Florio
强调循环能源和艺术与建筑之间的纽带,这7,000 SF私人艺术家的居住博尔德艺术家,丽贝卡迪多梅尼科,标志北博尔德与一个新的标志性地标。

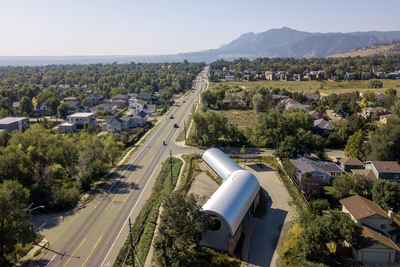

Emphasizing circular energy and the bond between art and architecture, this 7,000 sf private artist’s residency for Boulder artist, Rebecca DiDomenico, marks North Boulder with a new iconic landmark.
 © James Florio
c.James Florio
这个受地球启发的项目使用100%的可再生资源,展示了建造环境的无化石潜力。安装了四口垂直地热井,将地球的能量输送到建筑物的供暖和冷却系统。汽车上的太阳能屋顶为室内LED照明和电力提供能量。为了检验该结构的能源效率,我们执行了家庭能源评级系统(HERS),将其排在第74百分位数,超出编码要求3倍。

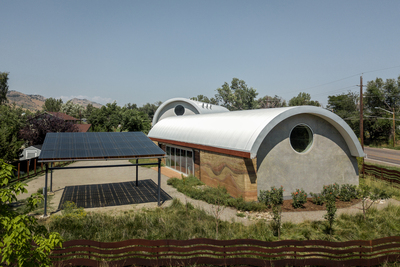

This Earth-inspired project is energized using 100% renewable resources, demonstrating fossil-free potential of the built environment. Four vertical geothermal wells were installed to transfer the Earth’s energy to the building’s heating and cooling system. A solar electric roof on the carport generates energy for interior LED lighting and electricity. To test the energy efficiency of the structure, a Home Energy Rating System (HERS) was performed, ranking it in the 74th percentile and exceeding code requirements by three times.
 © James Florio
c.James Florio
这座建筑是用200吨夯土建造的,土是一种由区域污垢和颜料组成的复合材料,被压缩成30“厚的墙。这为整个建筑增加了大量的热质量,是温度调节的最佳选择。承受结构负荷,这些密集的墙壁允许空间存在无障碍,理想的简化内部和展示艺术作品。
The structure was built using 200 tons of rammed Earth, a composite of regional dirt and pigments, compressed into 30” thick walls. This adds significant thermal mass to the building’s whole, optimal for temperature regulation. Bearing the structural load, these dense walls allow the space to exist free from obstructions, ideal for a simplified interior and exhibiting artwork.
 © James Florio
c.James Florio
为了完成这个空间,自然的细节被组装起来。地板被磨到了他们的天然抛光点,堆积如山的黑色河流岩石组成了浴室的墙壁。西班牙雪松以及回收的铁路车厢地板混合了建筑的地球色调和严酷的白色墙壁。
Natural details were assembled to finish the space. Floors were ground to the point of reaching their natural polish and stacked black river rocks make up the bathroom walls. Spanish Cedar as well as reclaimed railroad boxcar flooring blend the building’s Earth tones with the stark white walls.
 © James Florio
c.James Florio
创造力被赋予自由统治。与客户紧密合作,进行创造性的合作,并为想象力和概念性思维的发生提供一个空间,所有的想法都被允许无限的空间扩展。TRES鸟车间然后应用有方法的收缩,同时磨练客户想要的结果和满足预算以及物理约束。
Creativity was given free reign. Working closely with the client on creative collaboration and holding a space for imaginative and conceptual thinking to occur, all ideas were allowed limitless space to expand. tres birds workshop then applied methodical contractions, while honing the client’s desired result and meeting budget as well as physical constraints.
 © James Florio
c.James Florio
这两种建筑结构的设计是以圆形图案为基础的,体现了一种整体感。建筑物的末端是用倾斜的混凝土墙建造的,并在现场浇筑。窗户切割成完美的圆圈,创建入口到外面,并允许重轻穿透内部。
Fulfilling a sense of wholeness, the design of the two-building structure is based on circular patterns. The ends of the buildings were created using tilt-up concrete walls and were poured on site. Windows cut into perfect circles create portals to the outside and allow for heavy light penetration inside.

晕眩是一个在能源利用和美学上对大自然之美表示敬意的项目,证明可持续的设计能够创造一个既优雅又舒适的空间。
Swoon is a project that pays homage to the beauty of nature in both energy usage and aesthetics, proving sustainable design can result in a space that is both elegant and comfortable.
 © James Florio
c.James Florio
