合作建筑师RAF Armisetura区块/干墙隔墙Addor结构工程师[混凝土]JKMF基金会咨询/Geofix结构工程师[Steel]Beltec/CODEME[电气/公共卫生]工程师MHA[机械]工程师Tekka Fire MHA/Shaft BMS Bosco

Collaborating Architect RAF Arquitetura Blockwork / Drywall Partitions ADDOR Structural Engineer [Concrete] JKMF Foundations Consultrix / Geofix Structural Engineer [Steel] Beltec / CODEME [Electrical / Public Health] Engineers MHA [Mechanical] Engineers TEKNIKA Fire MHA / Shaft BMS Bosco & Associados Facade Consultant AJLP Surface Design Group Stone Consultant DGG Assessoria Ltda Landscape Architects Pamela Burton & Company Collaborating Landscape Architects Sergio Santana Waterproofing PROASSP Specialist Lighting ARUP Collaborating Specialist Lighting Studio IX LEED + Env Analysis CTE Acoustics Acustica & Sonica Accessibility Rogerio Romeiro Facade Access Gondomatic General Contractor HTB Engenharia e Construção Client Tishman Speyer - TS-19 Participações Ltda More Specs Less Specs

 © André Nazareth

(AndréNazareth)

架构师提供的文本描述。Aqwa公司项目是位于巴西里约热内卢滨水区的一级商业办公项目，战略位置位于马拉维勒港城市复兴区的中心。该项目位于20世纪的垃圾填埋场内，是该市历史悠久的港口地区大规模填海工程的一部分。纵观其历史，该地区一直是城市发展不可或缺的一部分，也是合唱和桑巴音乐诞生的地方。

Text description provided by the architects. The Aqwa Corporate Project is a Class A commercial office development along the waterfront in Rio de Janeiro, Brazil, strategically located at the heart of the Porto Maravilha urban regeneration district. Situated within a landfill zone dating back to the 20th Century, the project is part of an extensive land reclamation in the historic port area of the city. Throughout its history, the area has been integral to the city’s development and is where choro and samba music was born.

 © André Nazareth

(AndréNazareth)

 © André Nazareth

(AndréNazareth)

该网站还靠近里约港口地区，多年来一直被高耸的“外围”公路所隔离。作为总体规划的一部分，这条路线的一部分已经被拆除，重新整合了港口-每年仍有数千名游客来港-与该地区的其他地区重新融合。它还将恢复整个地区的公园、广场和其他公共空间，同时使交通流量合理化，并引入新的零售、商业和城市空间，在里约市中心创建一个充满活力的地区。

The site is also close to the port region of Rio, which has been isolated for many years by the raised ‘Perimetral’ highway. As part of the masterplan, a portion of this route has been demolished, reintegrating the port – which still receives thousands of visitors every year – with the rest of the area. It will also restore parks, squares and other public spaces throughout the district while rationalizing the traffic flow and introducing new retail, commercial and civic spaces to create a vibrant district in the heart of Rio.

该站点以新建立的Av为界。北部的罗德里格斯阿尔维斯城市高速公路和南部的阿韦尼达巴纳里奥高速公路，通过一个新的轻轨车站与公共交通连接良好，为该站点提供服务。该项目的核心是大中央广场-一个充满活力的步行公共领域与线性零售商场，重新创造了以街道为基础的公民经验，这个以前的轻工业港口地区。

The site is bounded by the newly established Av. Rodrigues Alves urban expressway to the north, and the Avenida Binário to the South, with excellent connections to public transport via a new Light Rail Station to serve the site. At the heart of the project is the grand central plaza – a vibrant pedestrian public realm with a linear retail arcade, recreating the street‐based civic experience of this former light‐industrial port area.

 © Nelson Kon

(Kon)

沿主规划区北缘面向水的所有地点也必须有一个“线性公园”-一个具有混合景观的区域，在罗德里格斯阿尔维斯高速公路沿线提供一个连续的缓冲区。一个400米长的直线公园紧靠着这个地点，在面对零售商场的海边建立了一条景观走廊。这包括自行车道，步行车道和着陆区在不同的水平，以创造一个视觉音障，以保护该地点远离高速公路，同时保留对瓜纳巴拉湾的看法。

All sites along the northern edge of the masterplan area facing the water are also required to have a ‘linear park’ – an area with mixed landscaping that provides a continuous buffer zone along the Rodrigues Alves Expressway. A 400-meter long linear park abuts the site, establishing a landscape corridor alongside the sea facing the retail arcade. This includes bike lanes, pedestrian paths, and landing zones at different levels to create a visual-sound barrier that shields the site from the expressway while retaining views towards the Guanabara Bay.

 © Nelson Kon

(Kon)

 Longitudinal Section

 © Nelson Kon

(Kon)

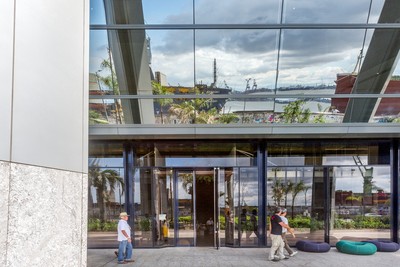

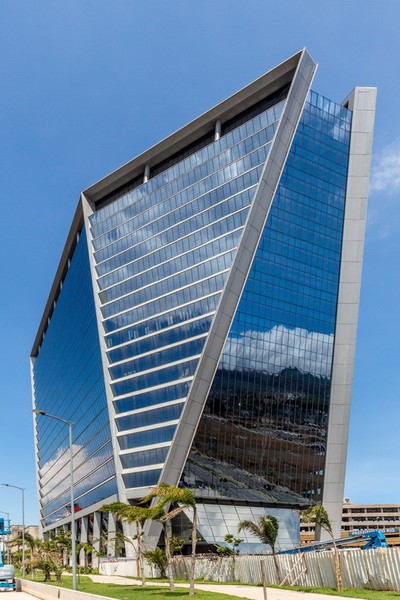

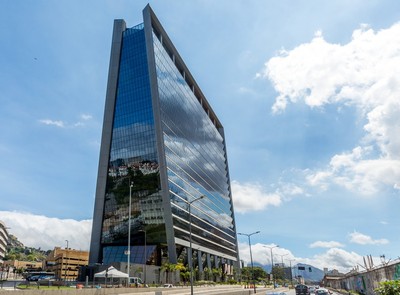

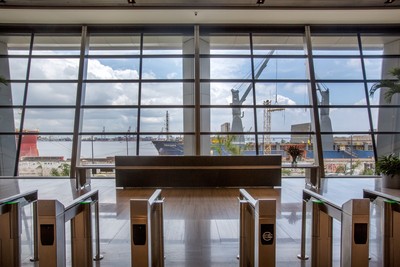

这座22层高的双栋建筑有一个分阶段的建设项目，包括12.5万平方米的办公空间，底部是零售和公共空间。停车场位于五层地下室，专用通道为两栋楼提供服务。每栋建筑的入口大厅都被提升到中央公共广场上方，可以看到港口和瓜纳巴拉湾的景色。

The 22-storey, twin-building development has a phased construction programme, and consists of 125,000 square meters of office space, with retail and public spaces at the base. Vehicular parking is provided in a five-level basement, with dedicated access ramps serving both buildings. The entrance lobby to each building has been lifted above the central public plaza, with views towards the port and Guanabara Bay.

 © Nelson Kon

(Kon)

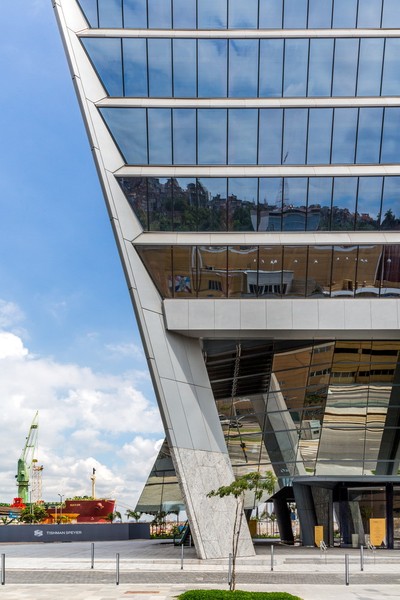

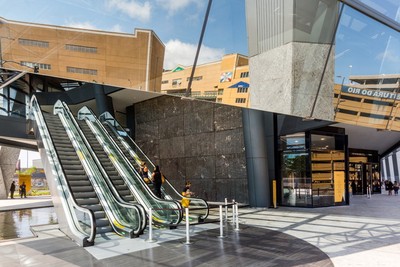

三条自动扶梯从中央广场上升到大楼大堂，另外还有从地下室层通往停车场的电梯。该服务核心和流通计划，使多达四个分租户可以占用每一层。该计划已纳入了用于垂直连接和内部楼梯的软点板区。在2.85米范围内，所有办公楼层的楼层与天花板高度都达到了最佳水平.主体结构由现浇混凝土板和金属桥面支撑组成，凸起的大厅作为悬吊的钢悬臂。

Three escalators rise up from the central plaza to the building lobbies, in addition to the elevators from the basement levels providing access from the car park. The service cores and circulation have been planned such that up to four sub-tenants can occupy each floor. Soft-spot slab zones for vertical interconnections and internal stairs have been incorporated into the plan. Clear floor-to-ceiling heights to all office floors have been optimized at 2.85 meters. The main structure consists of the in-situ concrete slab with metal deck support with the raised lobbies as a suspended steel cantilever.

 © Nelson Kon

(Kon)

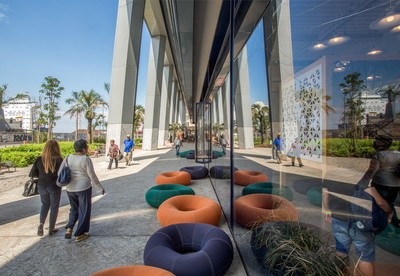

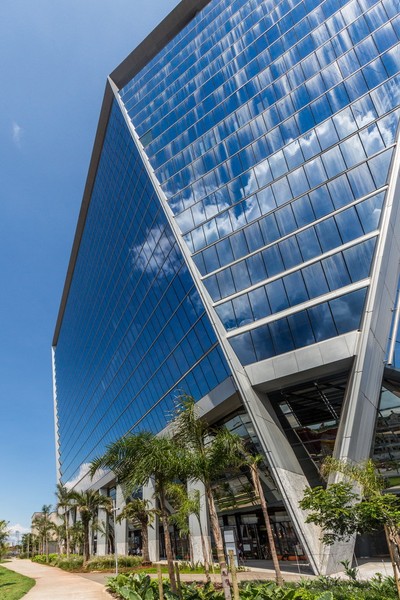

开发的目的是为了获得LEED ASHRAE黄金认证。该项目针对当地特殊的热带气候，建立了增强的建筑海拔的自遮阳策略，并在所有主要的露天公共循环和休憩空间提供有效的防晒和雨水覆盖。该设计基本上被认为是一个行人友好，完全开放的公共领域，中心广场作为整个项目的公民焦点。两个建筑入口框架广场，并易于识别从所有公共访问方式服务的网站。

The development has been designed to achieve LEED ASHRAE Gold certification. The project responds to the particular local tropical climate by establishing an enhanced self-shading strategy to the building elevations as well as providing effective sun protection and rain cover in all the principal open-air public circulation and amenity spaces. The design has been essentially conceived as a pedestrian-friendly, fully accessible, public realm, with the central plaza as the civic focus for the whole project. Both building entrances frame the plaza and are easily recognizable from all public access ways serving the site.

 © André Nazareth

(AndréNazareth)

 Ground Floor Plan

 © Nelson Kon

(Kon)

Architects Foster + Partners

Location Via Binário do Porto, 299 - Santo Cristo, Rio de Janeiro - RJ, Brazil

Team Norman Foster, David Nelson, Spencer de Grey, David Summerfield, Juan Frigerio, Pedro Haberbosch, Filomena Russo, Rui Alves, Anthony Cestra, Chris Farmer, Daniel Gaertner, Domingos Garcia, Jai Krishnan, Courtney Hunt, Consuelo Manna, Sebastian Mendez, Alonso De Garay Montero, Elke Pedal, Jorge Pereira, Maro Riga, David Santamaria, Nathan St. John, Anthony Stahl, Jose Vargas-Hidalgo, Francisco Waltersdorfer

Area 223000.0 m2

Project Year 2017

Photographs Nelson Kon, André Nazareth, Unloop

Category Office Buildings

Manufacturers Loading...
