Loft Renovation in Font Honrada Barcelona Adrian Elizalde Architecture

2018-06-01 11:00

架构师提供的文本描述。该项目介绍了1916年位于巴塞罗那老城的一栋建筑中的一套公寓的翻新工程。它的表面面积为46平方米，最初呈现的是一幅腐朽的图像，并与房间过于细分。外墙的两个窗户是唯一能够用来通风和自然照明的窗户。它有一个非常小的服务场，关闭了，后来又增加了一个电梯，占据了其中的大部分。主要目标是在公寓内最大限度地利用自然光和通风。策略上，将仆人区和储藏室集中在对面的立面上，使其余的公寓和生活区都能享受到室外的窗户。我们利用围墙的一堵凹墙把厨房安放了起来。

Text description provided by the architects. The project presents the renovation of an apartment in a building of 1916 located in the old town of Barcelona. It has a surface of 46 sqm and originally presented a decayed image and excessively subdivided with rooms. The two windows of the façade are the only ones able to use for ventilation and natural illumination. It has a very small service yard that is closed and an elevator added later occupying most of it. The main goal has been to achieve the maximum use of natural light and ventilation in the apartment. Strategy, accumulate the servant area and storage on the opposite side of the facade to free the rest of the apartment and the living areas can enjoy the outside windows. We took advantage of a recessed wall of the perimeter wall to place the kitchen.

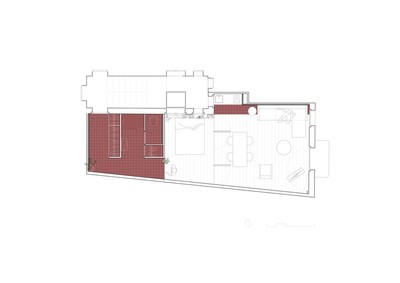

 Floor Plan

阁楼-建筑的结构墙在公寓的周边，使我们能够拆除所有的内部隔墙，形成一个透明的空间。然后，住宅被视为阁楼，我们简化了新的布局，以获得一个大而开放的空间，能够享受光线和通风的两个窗口在正面。只有周围的墙壁能够从公寓的任何地方看到整个空间，衣柜和厕所是唯一的封闭空间，这些空间被横向放置在提供卫生间隐私的空间上。

Loft The structure walls of the building are in the perimeter of the apartment, which enabled us to demolish all the interior partitions resulting in a diaphanous space. The dwelling is then considered as a loft, we simplified the new distribution to obtain a large and open space being able to enjoy the light and ventilation of the two windows in the facade. Only the perimeter walls reach the ceiling being able to perceive the whole space from anywhere of the apartment, the wardrobe and WC are the only closed spaces that are placed as boxes transversally to the space offering privacy to the bathroom.

 © Adrià Goulà

阿德里亚·戈拉

 © Adrià Goulà

阿德里亚·戈拉

开放式边界公寓是三大空间的线性继承，与一种大自由的关系相联系：仆人区/卧室/客厅。我们设计内部边界，以创造不同程度的隐私和使用之间的空间。在仆人区和卧室之间，最后一个盒子的排列与材料的突然变化形成了很强的限制。从知觉上看，你可以区分两个不同的空间。在卧室和客厅之间，在结构梁改变方向的地方，我们设计了一个滑动折叠门系统，创造了一个中间的柔性膜，让你可以转换空间。门单独移动，创造了一个动态组合的极限和无数的立场和程度的关系。

Open boundaries The apartment is a linear succession of three big spaces connected with a big freedom of relationship: servant area/bedroom/living room. We designed interior boundaries to create different degrees of privacy and use between the spaces. Between the servant area and the bedroom, the alignment of the last box matches a sudden change of materials creating a strong limit. Perceptively you can distinguish two different spaces. Between the bedroom and the living room, where the structure beams change direction, we designed a sliding and folding door system creating an intermediate flexible membrane that allows you transform the space. The doors move individually creating a dynamic composition of the limit and countless positions and degrees of relationship.

 © Adrià Goulà

阿德里亚·戈拉

第一个行动是移除多年来覆盖的所有材料，以达到传统的建筑元素。新材料包括，虽然显然是当代的，但与旧的和谐讨论，创造了一种统一的感觉和永恒的气氛。我们剥去木梁的油漆，以增强连续天花板的感觉。衣柜和厕所的盒子是用现代的气砖建造的，没有抹灰，所以质地与穿过公寓的暴露的旧砖墙形成了鲜明的对比。我们在公寓的背面涂上白色，以改善自然光线，因为它是最黑暗的区域，并突出原来的瓷砖重新安置在仆人的区域。

Materiality The first action undertaken was to remove all the materials overlaid during the years to reach the traditional building elements. The new materials included, though clearly contemporary, discuss harmoniously with the old creating a feeling of unity and timeless atmosphere. We stripped the paint of the wooden beams to enhance the feeling of a continuous ceiling. The boxes for the wardrobe and WC were built with modern airbricks without plastering so that the texture contrasts with the exposed old brick wall that runs through the apartment. We painted white the back of the apartment to improve natural light as it is the darkest area and highlight the original ceramic tiles relocated in the servant areas.
