新习俗。新范式

NEW CUSTOMS. NEW PARADIGMS

Charles Darwin

社会和文化习俗的变化直接影响到宜居空间的概念。

Changes in social and cultural customs have a direct impact on the conception of habitable spaces.

时间、文化、身份、可持续性是当前的问题。这座建筑是从建筑设计出来的，目的是解决许多这些问题，产生超越基本功能的空间，提出一种当代的生活方式。

Time, culture, identity, sustainability are current issues. This building is designed, from the architecture, to give answers to many of these concerns generating spaces that go beyond the basic functions proposing a contemporary way of living.

 © Fernando Schapochnik

c：Fernando Schapochnik

概念3104 FLATS首先是一个产品，其概念涉及不同的行为者。一个网站，一个客户，一个用户。建筑的一般概念是基于类型的灵活性和将绿色作为一个生活空间。

CONCEPT 3104FLATS is first and foremost a product whose conception involves diverse actors. A site, a client, a user. The general concept of the building is based on typological flexibility and the incorporation of green as a living space.

以解放土地的前部和底部为主要场所的位置，以中心区的环流核和湿润地区为前提，实现了一个完全自由的周界。

Taking as premise the liberation of the front and the bottom of the land for the location of main premises, the nucleus of circulation and the humid areas in the central area are located achieving a completely free perimeter.

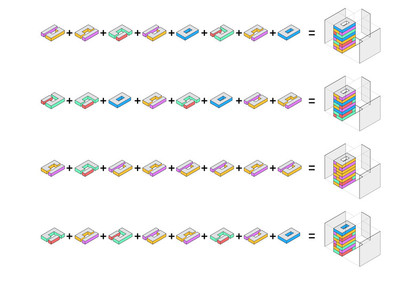

 Typology / Concept

类型学/概念

 Axonometric / Typology

轴测/类型学

 Axonometric / Vegetation

轴测/植被

此配置作为一组插入(俄罗斯方块)，支持一、二、三和四环境的单元格的连接。绿色的扩展，无论是公共的还是私人的，都把外部作为生活空间。这样，就涉及到了景观，同时也对景观进行了调整和调整。

This configuration, as a set of inserts (tetris), enables the articulation of cells of one, two, three and four environments. The green expansions, both public and private, incorporate the exterior as living space. In this way, the landscape is involved, which is appropriated and modified at the same time.

 © Fernando Schapochnik

c：Fernando Schapochnik

这座建筑是在8层楼的基础上发展起来的。每层有两个单元，它们的视线总是面向对面的前厅和卧室，以及服务所在的走廊。这会产生一个经过的情况和交叉通风。

CONFIGURATION AND MATERIALITY The building is developed on 8 floors. Each floor has 2 units whose stares always face the front and bedrooms to the opposite and a corridor where the services are located. This generates a passing situation and cross ventilation

 Constructive Detail

构造细节

浴室允许同时使用。在露台上有一个绿色的区域，有烧烤和共同的花园。一楼，以一个大的接待露台的方式，以坦率的方式向城市开放。

The bathroom allows simultaneity of uses. On the terrace there is a green area with grill and common garden. The ground floor, in the manner of a large reception patio, opens in a frank manner towards the city.

 © Fernando Schapochnik

c：Fernando Schapochnik

在物质性方面，混凝土、玻璃和植被条纹的强烈形象在窗户和阳台上的同质化城市轮廓中脱颖而出。

In terms of its materiality, a strong image of concrete, glass and vegetation stripes stands out in the profile of a homogenized city in curtains of windows and balconies.

大窗口与外部融合在一个游戏的背景和数字。有一个节奏的声音和安静播放交替的不透明和透明的波段。金属网成为绿色藤蔓生长的向导，负责过滤西北太阳。

Large windows merge with the outside in a game of background and figure. There is a rhythm of sounds and silences played by alternating opaque and transparent bands. A metal mesh becomes the guide for the growth of the green vine, responsible for filtering the northwest sun.

 © Fernando Schapochnik

c：Fernando Schapochnik

合成。城市住宅的乌托邦是可能的

SYNTHESIS. THE UTOPIA OF THE URBAN HOUSE IS POSSIBLE

面对当前城市住宅问题的创新过程，以整体的方式，开辟了一条反思居住的道路。居住在城市里的人不仅要寻找居住的空间，还要寻找归属感和身份认同。

The creative processes that face the problem of current urban housing in an integral way, open a path towards reflection on inhabiting. Those who inhabit the city not only look for spaces to live in, but also belonging and identity.

 © Fernando Schapochnik

c：Fernando Schapochnik

这座建筑通过其类型灵活性和纳入可持续主题，有能力为构成当代城市情景的各种行为者提供答案。一个可以阻止当前生活眩晕的空间。休息一下，在草坪上喝一杯，享受织物的轮廓。

This building, through its typological flexibility and its incorporation of sustainable themes, has the capacity to give answers to the diverse actors that are part of the configuration of the contemporary city's scenario. A space where the vertiginosity of current life can be stopped . A break to drink mate on the lawn enjoying the profile of the fabric.

Architect A3 LUPPI UGALDE WINTER

Location Franklin D. Roosevelt 3104, C1428 CABA, Argentina

Authors Architects Santiago Luppi, Javier Ugalde, Andrea Winter

Desarrolladora Buenos Aires Flats

Area 2000.0 m2

Project Year 2017

Photographer Fernando Schapochnik

Category Apartments

Manufacturers Loading...
