GV51 Penthouse Apartments Ela Nesic + Danilo Nedeljkovic

2018-06-08 05:00
架构师提供的文本描述。干预的主要任务是扩大现有建筑物的屋顶,以便在现有对象之上获得两套复式/顶层公寓。既有建筑的街道立面是本着学术精神而建的,但新册的立面在形式和物化上是不同的,是按照现代精神设计的,使用的是现代材料。
Text description provided by the architects. The main task of the intervention is the roof extension of the existing building for the sake of obtaining two duplexes/penthouses over the existing object. The street facade of the existing building was built in the spirit of academism but the facade of the new volume is different in form and materialization, designed in the modern spirit and with use of modern materials.
 Floor Plans
平面图
这一新部分的玻璃外墙在功能上站稳了脚跟-更确切地说,是在投影空间中引入日光,因为由于其明显的北方方向、地块上细长的形状以及紧凑型城市街区常见的幕墙,这座建筑在接收自然光方面受到了限制。玻璃外墙还实现了室内空间的新体积得到了更多的自然光和看起来比更低的,砖石建造的地板更加乐观。
The glass facade of the new part has a foothold in functional reasons-more precisely in the introduction of daylight into projected spaces, since the building is limited in terms of receiving natural light due to its pronounced northern orientation, elongated forms on the plot and blindside walls common for a compact city block. Glass facade also achieved that interior space of new volume gets much more natural light and looks much more optimistic than the lower, masonry built floors.
 © Relja Ivanic
c.Relja Ivanic
通过在街道外墙上引入玻璃幕墙,还实现了消除内外边界和消除新卷的非物质化的原则。介绍了黄色彩绘玻璃的外观部分,以恢复和刷新卷的玻璃表面,以及与旧立面的一些元素进行视觉连接。
By introducing the glass wall curtain on the street façade, the principle of erasing the interior and exterior boundaries and dematerialization of the new volume has been also achieved. The segments of the façade from the yellow painted glass were introduced to revive and refresh the glass surface of the new volume, as well as to make a visual connection with some elements of the old facade.
 © Relja Ivanic
c.Relja Ivanic
街道绿色植物在新的玻璃外墙上的反射产生了不同的视觉效果,这些效果一直在变化,取决于一年的时间和天气条件。室内空间的附加质量是通过屋顶窗户获得的天光提供的,通过上层的玻璃地板达到双层的较低水平,并在视觉上增加空间的体积。
The reflection of street greenery on the new glass façade creates different visual effects, which are changing all the time depending on the period of the year and from weather conditions. The additional quality of the interior space is provided by the zenithal light achieved through the roof windows, which through the glass floor of the upper level reach all to the lower level of duplexes and visually increases the volume of space.
 © Relja Ivanic
c.Relja Ivanic
室内空间被认为具有多用途。目前,复印机有一个商业目的,但他们有这样一个组织,它可以很容易地转化为经典公寓。较低层次的重复设计为连续空间。在他们的底部,五颜六色的空间口音,看上去是“蓝色胶囊”的服务功能。上层是一个更亲密的空间,单独的房间连接整个走廊与一个宽敞的街道露台。

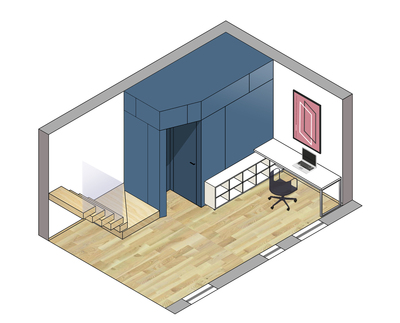

The interior space is conceived to have a multipurpose use. Currently, duplexes have a business purpose, but they have such an organization that it could easily be transformed into classic apartments. The lower levels of duplexes are designed as continuous spaces. At the bottom of each of them, colorful space accent with a look of "blue capsule" for service functions are located. The upper levels are organized as a more intimate space, with separate rooms connected all through a corridor with a spacious street terrace.
 © Relja Ivanic
c.Relja Ivanic












Architects Danilo Nedeljkovic, Ela Nesic
Location Leopoldova kapija, Beograd, Serbia
Area 300.0 m2
Project Year 2018
Photographs Relja Ivanic
Category Apartment Interiors
