STLArchitects Reveal Competition Design Entry on Former Chicago Spire Site
2018-06-24 16:00
Courtesy of STLarchitects
该遗址位于芝加哥河和密西根湖河口的奥格登滑雪场之间,将有两座向顶部倾斜的纤细塔楼。分隔的塔楼将构成城市景观的框架,同时也被确定为一个统一的项目,为天际线做出贡献。
The site, located between the Chicago River and the Ogden Slip at the mouth of Lake Michigan, would feature two slim towers that taper towards the top. The separated towers would frame views of the city while also being identified as one, unified project contributing to the skyline.
建筑物的大小相对于现场的约束要求创新的结构工程解决方案,“利用粘滞阻尼器技术,消除了调谐质量阻尼的需要”。这不仅有助于降低塔楼的成本,而且还提供了更大的结构稳定性,使项目顶部有宝贵的房地产空间。
The size of the building relative to the constraints of the site called for an innovative structural engineering solution that "takes advantage of viscous damper technology eliminating the need for tuned mass damping." Not only does this help reduce costs of the towers, but it also gives a greater structural stability which returns valu
Courtesy of STLarchitects
STL建筑师还考虑了地板的几何形状,以允许在每个住宅层内的各种单元类型。门面也能适应这一点,并使不同的模式和表现窗口,包括框架,全玻璃窗墙,甚至两者的组合。

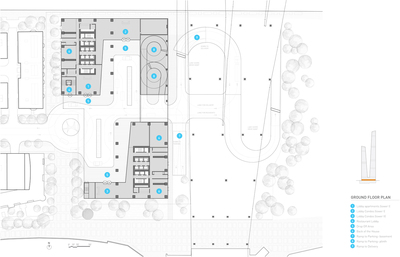

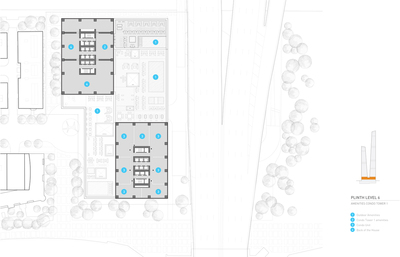

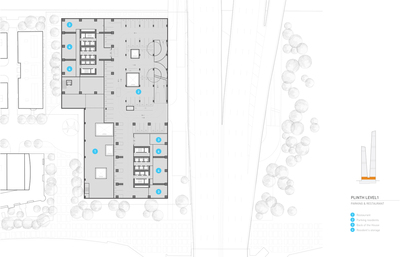

STLarchitects also considered the geometry of the floor plates to allow for a variety of unit typologies within each residential level. The façade is adaptable to this as well and enables different patterns and expressions of windows including framed, full glass window walls, or even a combination of both.
在该计划的设计,STLArchitect与结构工程师ARUP芝加哥合作,外观顾问ENAR马德里。
For the scheme's design, STLArchitects worked in collaboration with structural engineer ARUP Chicago, and facade consultants ENAR Madrid.
建筑师STL建筑师地点400 N湖海岸博士,芝加哥,IL 60611,美国客户相关的中西部结构工程师ARUP芝加哥外观顾问公司ENAR马德里地区0.0英尺2项目年2016年
Architects STLarchitects Location 400 N Lake Shore Dr, Chicago, IL 60611, USA Client RELATED MIDWEST Structural Engineer ARUP Chicago Facade Consultant ENAR Madrid Area 0.0 ft2 Project Year 2016
