架构师提供的文本描述。2016年，卡安建筑公司邀请我们开发两座新建筑，这两座建筑将在圣保罗内陆的圣何塞·多斯·坎波斯和皮拉基卡巴的安亨比·莫伦比大学新校区办公。这些项目是由BRC小组协调的。

Text description provided by the architects. In 2016 KAAN Architecten we were invited to develop two new buildings, which will house the new campuses of the Universidade Anhembi Morumbi in São José dos Campos and Piracicaba, in the inland of São Paulo State. The projects were coordinated by BRC Group

 © Fran Parente

(Fran Parente)

兄弟建筑的诞生就包含了可持续性和灵活性的概念，这些概念来自于一种强有力的建筑形式，同时也具有渗透性，体现了机构的特点。该设计的适应性确保了每一座建筑都完全符合其不同植入地的气候和周围环境的特殊性，同时又不失去标志着安亨比莫伦比大学教学单元扩展的这一新阶段的审美统一性。

The sibling buildings are born incorporating concepts of sustainability and flexibility from an architecture of strong presence and at the same time permeable, representing the character of the institution. The adaptability of the design ensured that each building perfectly suited the particularities of the climate and surroundings of its different places of implantation, without losing the aesthetic unity that marks this new phase in the expansion of the Anhembi Morumbi University teaching units.

 © Fran Parente

(Fran Parente)

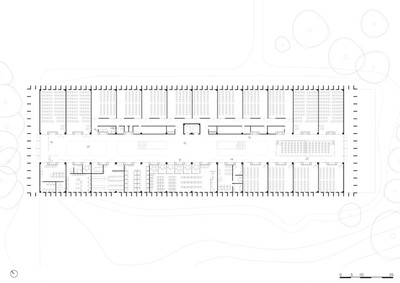

 Ground floor plan

 © Fran Parente

(Fran Parente)

 First floor plan

第一层平面图

 © Fran Parente

(Fran Parente)

这两座建筑都有着相同的设计选择：通过对具有代表性的门面采取非尺度的方式，为安亨比莫伦比大学校园创造一个优雅而强大的建筑特色，为学生和机构提供一个丰富的中央公共空间，促进社会互动，并通过允许更多的自然空气流通来应对这些地区炎热的巴西气候。

Both buildings have been driven by the same design choices: to create an elegant yet strong architectural identity for the campuses of the Universidade Anhembi Morumbi through a non-scale approach to the representative façades, providing the students and the institution with a generous central common space that promotes social interaction and responds to the hot Brazilian climate of these regions by allowing greater circulation of natural air.

 © Fran Parente

(Fran Parente)

在皮拉奇卡巴的新建筑占据了城市南部第二城市扩展轴沿线的一块地块。通过优化其地区的地形特征，并借助平衡的立面几何，该项目是地标，坚定和直观地向城市开放，使大学在建筑全景图中有一个可识别的位置，水平展开，位于周围景观的斜坡上，与之直接对话。

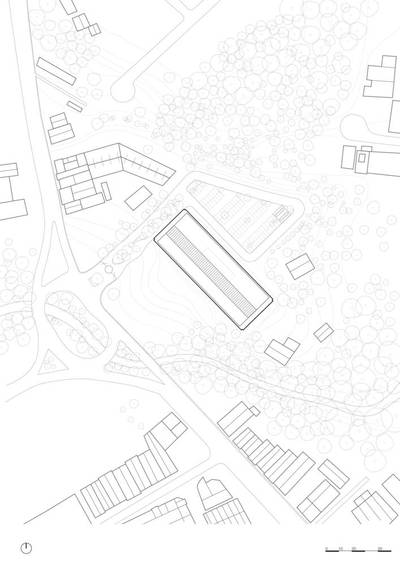

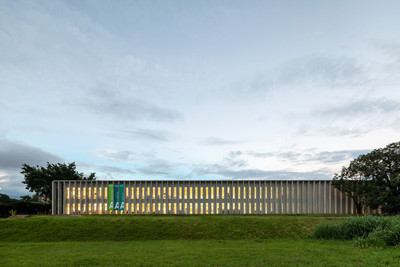

The new building in Piracicaba occupies a plot along a secondary urban expansion axis in the southern part of the city. By optimizing the topographical characteristics of their areas and thanks to the balanced façade geometries, the project is landmarks that firmly and visually open themselves to the city, giving the University a recognizable position within the architectural panorama, horizontally developed and lies on the slope of the surrounding landscape, directly dialoguing with it.

 © Fran Parente

(Fran Parente)

巴西强烈的太阳辐射被一个完全包罗万象的垂直板系统所缓解，它满足了每个立面遮阳的需要。选择一个固定的结构体系，使Kaan建筑能够在薄混凝土板和屋顶梁之间安装玻璃。该结构是预制件，以提高尖锐和准确的附着系统。

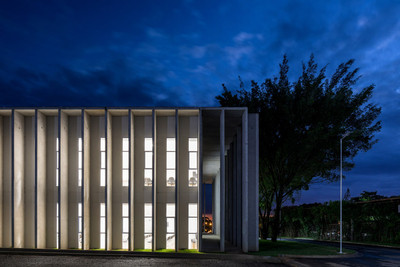

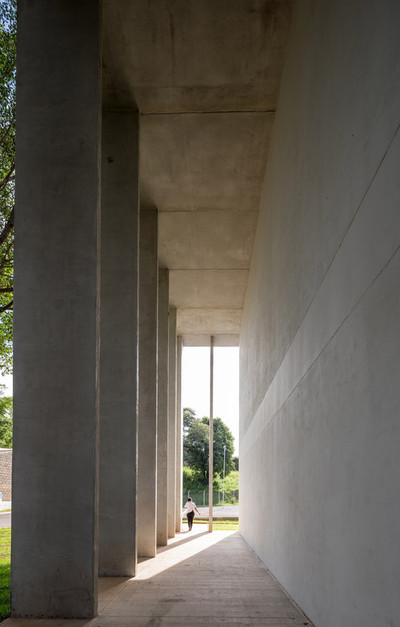

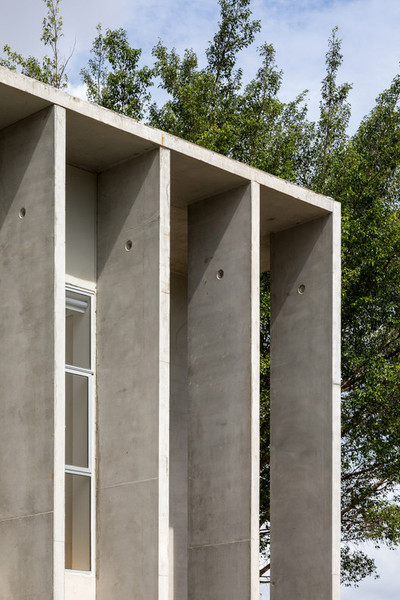

The intense Brazilian solar radiation is mitigated by a fully encompassing system of vertical slabs that fulfills the need for shade in every façade. Choosing a regular structural system enabled KAAN Architecten to feature glass in between the thin concrete slabs and the roof beams. The structure it was prefabricated to enhance sharpness and exactitude in the attachment system.

 © Fran Parente

(Fran Parente)

外墙玻璃的广泛使用提高了透明度，并显示出与城市建筑的深刻联系。此外，焦糖树脂地板舒适地反映了丰富的自然光在社会核心和通道的建筑物。自然通风和光线是通过天花板优化在混凝土和较小的木制元素作为太阳叶片。

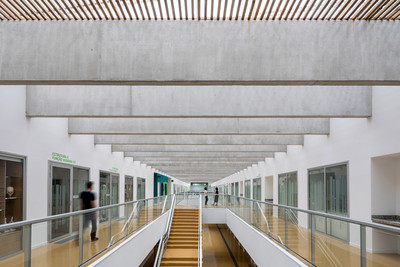

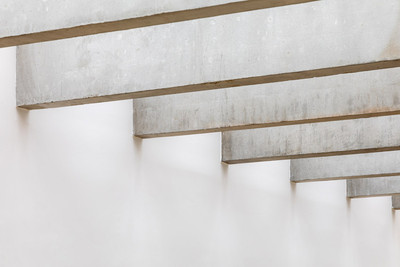

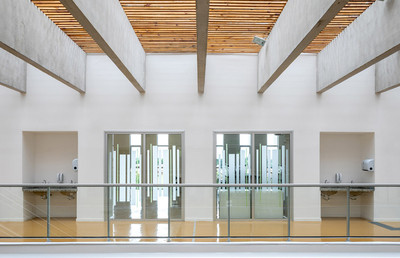

The wide use of glass in the façades enhances transparency and reveals a deep connection with the architecture of the cities. Moreover, a caramel resin floor comfortably reflects the abundant natural light in the social core and passageways of the buildings. The natural ventilation and light are optimized via a ceiling pergola in concrete and smaller wooden elements acting as sun blades.

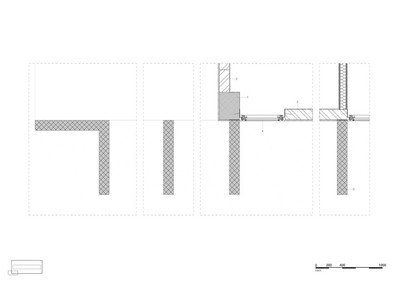

 Facade Detail

外观细节

共享项目包括教室、不同的练习和模拟实验室、自助餐厅、理疗设施、图书馆和办公室。所有的教育空间都位于纵向玻璃幕墙旁，以利用自然光，并面向大规模的中心空间，以体现建筑的核心社会身份及其作为相遇、人与人之间联系和知识交流的场所的本质。

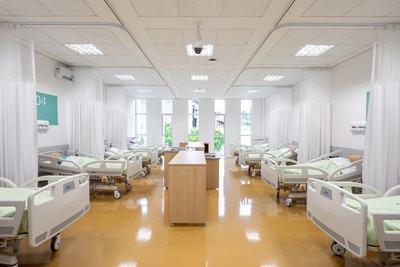

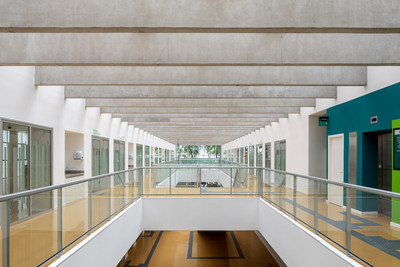

The shared program features classrooms, diverse laboratories for practice exercises and simulation, a space for the cafeteria, physiotherapy facilities, a library and offices. All educational spaces are situated alongside the longitudinal glazed façades to take advantage of the natural light and have been oriented towards the large-scale central void, to embody the buildings’ core social identity and its essence as a place for encounters, human connection and knowledge exchange.

 © Fran Parente

(Fran Parente)

在仔细分析了结构机会之后，在圣何塞·多斯·坎波斯大楼采用了一套由现浇混凝土制成的带肋板系统。在Piracicaba中，采用了一个肺泡板系统，探索预制混凝土的最佳可能性。这些选择允许宽的自由跨度和基于严格的1.50x1.50米网格的显着的空间模块化。此外，对太阳辐射的深入研究产生了巨大的从地板到天花板的窗户，为教室和实验室提供充足的日光，利用垂直的混凝土元素产生的深阴影。

Following a careful analysis of the structural opportunities, a system of ribbed slabs made possible by in-situ molded concrete was adopted in the São José dos Campos building. In Piracicaba instead a system of alveolar slabs was employed, exploring the best possibilities of precast concrete. These choices allow wide free spans and a significant modularity of space based on a rigid 1.50 x 1.50 meter grid. Moreover, the in-depth study into solar radiation results in large floor-to-ceiling windows, which grant abundant daylight to classrooms and laboratories, playing with the deep shadows generated by the vertical concrete elements.

Architect KAAN Architecten, URBsp Arquitetura

Location Av. Rio das Pedras, 1600 - Piracicamirim, Piracicaba - SP, Brazil

Authors Kees Kaan, Vincent Panhuysen, Dikkie Scipio, Renata Gilio

Team Marco (Peixe) D'Elia, Mariana Mariano, Paolo Faleschini, Ricardo Marmorato, Laís Oliveira Xavier, Cristina Gonzalo Cuairán

Area 9300.0 m2

Project Year 2018

Photographs Fran Parente

Category University
