Interamerican University Boyancé Arquitectos

2018-07-25 09:00
架构师提供的文本描述。这片土地位于坎佩切市西南,面积4,690.40平方米,北临与海接壤的城市的主要街道,一边是一条小街,这是在设计时考虑到其方向和环境的重要因素。
Text description provided by the architects. The land is located south-west of the city of Campeche, Campeche, has an area of 4,690.40m², bordered on the north by the main street of the city that borders the sea and a side street on one side, important factor at the time to design, taking into account the orientation and context where it is.
 © Manolo R Solis
M.Manolo R Solis

 Lower Floor Plan
低层平面图
 © Manolo R Solis
M.Manolo R Solis
该方案在3,000.00m2的区域内得到解决,该区域分为两个层次和一个半地下的行政区域、教室和娱乐区,不规则地形的形状被用来创建一个整体建筑,其中中央的体积被减去,产生了自然照明、通风和区域之间的等距。
The program was solved in an area of 3,000.00m² divided into two levels and a semi-subterranean level of administrative areas, classrooms, and recreational areas. The shape of the irregular terrain was used to create a monolithic building with a central volume subtracted, generating natural lighting, ventilation, and equidistance between the areas.
 © Manolo R Solis
M.Manolo R Solis
 © Manolo R Solis
M.Manolo R Solis
当我们意识到传统的走廊被用作社交场所时,我们选择增加这个大的中央庭院,在这个庭院周围,整个建筑展开,所有的空间都有自然光、优越的通风口和海景;同样地,它也被用作娱乐区域,当戴上白色聚碳酸酯罩时,它就像一盏巨大的天然灯。
When we realize that traditional corridors are used as social areas, we chose to increase the program with this large central courtyard, around which the whole building unfolds, leaving all the spaces with natural light, privileged vents, and sea views; In the same way, it is used as a recreational area that, when put on a white polycarbonate cover, works as a great natural light lamp.
 © Manolo R Solis
M.Manolo R Solis
这四个正面被赋予了一种基于具体卡特尔的节奏,这些卡特尔根据不同的方向被打开、关闭或旋转,以对视觉和太阳作出反应。在该幅土地的南面,当局建议把停车场设于土地较少的地方,以便在第二条街有通道,以免在主干道造成交通问题。
The four facades were given a rhythm based on concrete cartels that are opened, closed or rotated depending on the orientation, to respond to the visuals and to the sun. On the southern side of the land, it was proposed to locate the parking lot, placing it in the less privileged part of the land and thus have access in the secondary street so as not to generate traffic problems in the main road.
 © Manolo R Solis
M.Manolo R Solis
在建筑物的外围留下了一条绿化带,作为外部噪音的缓冲。地形被用来建立一个俯瞰大海的实验室半地下室。材料,如表面混凝土,玻璃和天然铝被用于大学的低维护。
A green belt was left on the periphery of the building that works as a buffer to outside noise. The topography was used to put a semi-basement of laboratories overlooking the sea. Materials such as apparent concrete, glass, and natural aluminum were used for the low maintenance of the University.

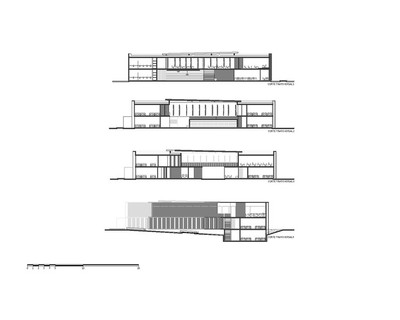

 Sections 1
部分( section的名词复数 ) 1
 © Manolo R Solis
M.Manolo R Solis
 © Manolo R Solis
M.Manolo R Solis
































Architects Boyancé Arquitectos
Location Av. Resurgimiento esq. Av, López Mateos, Campeche, Camp., Mexico
Author Architect Gerardo Boyancé Ancona
Architects in Charge Natalie Dager García, Arch. Andree Pasos Dzul
Area 3000.0 m2
Project Year 2018
Photographs Manolo R Solis
Category University
