结构工程BDA设计，J.Greg Brickey，SE总承包商TLW建筑，Tarik Williams，Ted Williams项目总监Mike Oberst Graphics

Structural Engineering BDA Design, J. Greg Brickey, SE General Contractor TLW CONSTRUCTION, Tarik Williams, Ted Williams Project Superintendent Mike Oberst Graphics & Drawings Chen + Suchart Studio, LLC More Specs Less Specs

 © Matt Winquist

(马特·温奎斯特

架构师提供的文本描述。肯尼斯地方镇是由两个4单元的联排住宅开发项目组成，位于亚利桑那州坦佩市，毗邻亚利桑那州立大学。原来的单一家庭分区被修改，将两块土地连在一起，以追求更高的密度。这种增加密度的愿望支持了坦佩市的总体计划，在这个地点，轻轨附近的密度被认为是更好的建筑环境，在其他典型的1950年郊区社区。

Text description provided by the architects. Kenneth Place Townhomes is comprised of two 4-unit townhouse developments located in Tempe, Arizona adjacent to Arizona State University. The original single-family zoning was amended by joining two lots together in order to pursue increased density. This desire for increased density supports the City of Tempe’s General Plan, whereby density in this location near the light rail is considered to be better for the built environment in the otherwise typical 1950’s suburban neighborhood.

 © Matt Winquist

(马特·温奎斯特

由于费用考虑，使用了传统的2X木框架结构(120美元/SF)。这两座建筑中的每一座都采用简单的木框架“盒子”的形式。这四个高度中有三个是完全平面和直线的。第四标高包含了每个单元的条目，并通过其微妙的操作，上下层的墙壁，轻微地联系起来。这种细微的结构差异提供了一定程度的空间和视角的多样性，在内部和外部空间的范围内，常规木框架和标准混凝土板的等级建设。

Conventional 2X wood framed construction was utilized due to cost considerations ($120/SF).  Each of the two buildings takes the form of simple wood framed ‘boxes’. Three of the four elevations are completely planar and rectilinear.  The fourth elevation incorporates each of the unit’s entries and is slightly articulated through its subtle manipulation of the lower and upper floor’s walls.  This slight difference in the configurations offers a degree of spatial and perspectival diversity in the interior and exterior spaces within the confines of conventional wood framing and standard concrete slab on grade construction.

 © Matt Winquist

(马特·温奎斯特

下层的开放式计划配置将厨房、餐饮和生活空间结合为一个空间，通过10英寸高地板到天花板隔热玻璃，可以俯瞰进入庭院。在第二层次上，开放的研究空间从下面扩展公共空间。客房和主套房的私人空间也位于第二层。楼层平面的轻微偏移允许在另外有效的楼层平面中进行空间的分集。

An open plan configuration on the lower level combines the kitchen, dining, and living spaces as one space overlooking the entry courtyards by means of 10’ tall floor to ceiling insulated glazing.  On the second level, the open study room extends the public space from below. The private spaces of a guest bedroom and a master suite are also located on the second level. Slight shifts in the floor plan allow for a diversity of space making in an otherwise efficient floor plan.

 © Matt Winquist

(马特·温奎斯特

在目前的建设“气候”的坦佩和大都市区，经济包覆提供两个不同的选择：粉刷灰泥或金属覆层。由于这一主要考虑，该项目的语言和细节的皮肤利用瓦楞纸Galvalume的质量，为大多数项目。穿孔波纹Galvalume为高地提供了额外的多样性，其位置取决于规划考虑因素。例如，穿孔包层位于每个入口庭院，以开发这些垂直的两层空间，而在项目的西北角和东南角，它提供景观和防晒。波纹的变化方向提供了对邻域尺度的敏感性。标准粉刷灰泥，仅位于入口庭院，标志着进入和欢迎居住者与沙漠金盏花的颜色。低E绝缘玻璃为自然光提供节能开口。

In the current construction “climate” of Tempe and the metropolitan area, economical cladding of a building offers two distinct choices: painted stucco or metal cladding. As a result of this major consideration, the language and detailing of the project’s skin exploits the qualities of corrugated Galvalume for the majority of the project. Perforated corrugated Galvalume provides additional diversity for the elevations and their locations are dictated by programmatic considerations. For example, the perforated cladding is situated at each of the entry courtyards to exploit these vertical two story spaces, while on the northwest and southeast corners of the project, it offers views and protection from the sun. The varying direction of the corrugation offers sensitivity to the scale of the neighborhood. Standard painted stucco, solely located in the entry courtyards, signify entry and welcome occupants with the color of desert marigolds. Low-E insulated glazing provides energy efficient openings for natural light.

 © Matt Winquist

(马特·温奎斯特

在这一类型的主要由开发人员驱动的环境中，设计和体系结构常常被置之不理。外国建筑语言的大量涌现就证明了这一点，这些语言常常变得正常或被接受。肯尼斯·普拉斯·汤豪斯在这个经常被捏造的“建筑迪斯尼乐园”立面的气候和经济环境中追求设计和创新，相反，它提供了一个以完整为基础和构思的生存空间。

In the largely developer driven context of this typology, design and architecture more often than not take a backseat to integrity.  This is evidenced by the proliferation of foreign architectural languages, which have too often become normal or accepted. Kenneth Place Townhomes pursues design and innovation within the very climate and economics of this often fabricated facade of the “architectural Disneyland” by instead, offering a space to live, which is rooted and conceived in integrity.

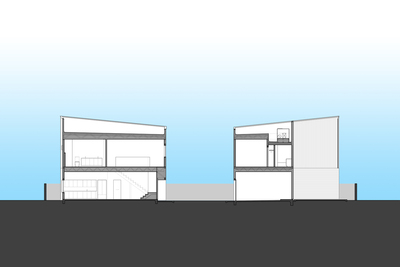

 Longitudinal Section

 Second Floor Plan

二层平面图

Architects Chen + Suchart Studio

Location Tempe, United States

Principals Szu-Ping Patricia Chen Suchart, Thamarit Suchart

Project team Aaron Bass, Gabriel Quijada

Area 16823.0 m2

Project Year 2016

Photographs Matt Winquist

Category Houses
