Shed for Firewood Clou Architekten
2018-08-08 04:00
架构师提供的文本描述。Holzkorporation Dübendorf的工场就坐落在树林的边缘,坐落在一个叫做Geeren的社区里。随着新结构的建立,建筑群向森林延伸。六种云杉木材粘结剂组成了初级结构,每一层都连接到三根屋顶梁和一侧的一根梁上。木材建筑坐落在一个混凝土基础上,它沿着地形自然倾斜。四根钢索交叉加固中间粘结层的结构。

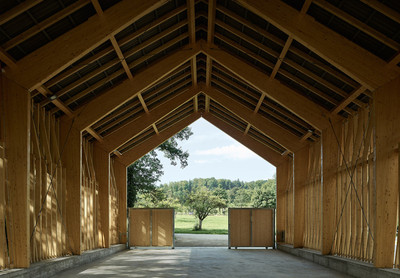

Text description provided by the architects. The work yard of the Holzkorporation Dübendorf, is situated right along the edge of the woods, nestled in a community called Geeren. With the building of the new structure, the complex was extended towards the forest. Six glued spruce wood binders form the primary structure, each of which is connected to three roof beam and a girder on one side. The wood construction sits on a concrete foundation, which slopes naturally along the terrain. Four steel cable crosses reinforce the structure in the middle binder field.
墙的覆层,遮阳篷加劲板和粘合剂是连接简单的钉和旋转像一个网周围的梁和粘合剂。具有看似清晰的层次结构的元素合并为一个元素。通过在永恒的屋顶下的灰色色调下的石板,这一形象得到进一步加强。墙面的横梁在屋檐高度和底座上通过一根穿过的钢管连接起来,使它们看起来浮在一起,支撑着整体的纺织和丝状外观。整个建筑,除了胶黏剂外,都是用未经处理的云杉原木梁制造的。其他材料的微妙实施,如镀锌钢、混凝土和永恒,强化和突出了木材的存在。
Wall cladding, awning stiffeners and binders are connected with simple pegs and are spun like a web around the girders and binders. Elements with a seemingly clear hierarchy merge into one element. By colouring the slats under the eternit roof in a grey tone, this image is further strengthened. The beams of the wall cladding are connected at eaves height and base by a steel tube that passes through, making them appear to float and support the overall textile and filigree appearance. The entire construction, with exception of the glued binders, is manufactured out of raw and untreated spruce wood beams. The subtle implementation of other materials, such as zinc coated steel, concrete and eternit intensifies and highlights the presence of wood.
半开放的正面试图考虑森林和社区边缘之间的建筑的不同方面。过滤墙足够封闭,以防止森林动物进入结构,并充分开放,以满足储存木柴的要求。意想不到的结构唤醒了好奇心,并诗意地坐在这个受欢迎的娱乐区边缘的树林。通过美学和功能的结合,这个项目反映了一个进步的立场,所有的传统林业公司都有天赋的材料木材。
The semi-open front tries to give consideration to the different aspects of a building between the forest and the edge of the community. The filter-like wall is sufficiently closed to keep forest animals from accessing the structure and adequately open enough to fulfill the requirements of storing firewood. The unexpected structure awakens curiosity and sits poetically in this popular recreational area on the edge of the woods. By combining aesthetic and function, this project reflects the stance of a progressive and all the same a traditional forestry company with a flair for the material wood.
Architects Clou Architekten
Location Dübendorf, Switzerland
Lead Architects Clou Architekten
Photographs Andreas Graber
