架构师提供的文本描述。Siedlce的地区法院建筑群是西泽地区法院宣布的建筑竞赛的结果，2011年由HRA建筑师(Hermanowicz Rewski Architect)获胜。作为建筑竞赛的获胜者，作为首席设计师，我们的建筑实践在所有设计阶段(包括原理图设计、建筑许可证设计和执行设计)开发了多学科设计文件，代表投资者获得了建筑许可证，并在作者的监督下获得了建筑许可证，直至2016/2017年度获得建筑占用许可。

Text description provided by the architects. Regional Court building complex in Siedlce is the result of the architectural competition announced by the District Court in Siedlce and won by HRA Architects (Hermanowicz Rewski Architects) in 2011. As the winner of the architectural competition, acting as the lead designer, our architectural practice developed a multi-discipline design documentation within all design stages (including schematic design, building permit design and execution design), obtained the building permit on behalf of the Investor and supervised construction works, in terms of author’s supervision, until the building occupancy permit in 2016/2017.

 © Bartłomiej Witczak

łmiej Witczak

 Ground Floor Plan

 © Bartłomiej Witczak

łmiej Witczak

地区法院大楼建筑群位于Nowe Siedlce地区，Kazimierzowska街31A的一个大的长方形地块上。由于地下水位较高，原地块的水位提高了约1米。所获得的平台，符合相邻街道的水平，作为新的代表性建筑的基础。三层高地区法院主楼被设计成一个单一的街区，立面由重复的立柱的垂直节奏定义，平稳地变成前广场的水平隔板，专门用于公共停车场。主入口区设计为通往主入口的高角门廊。在这座大楼内，提供了两个内部庭院，可从主建筑后面的雇员停车场进入。

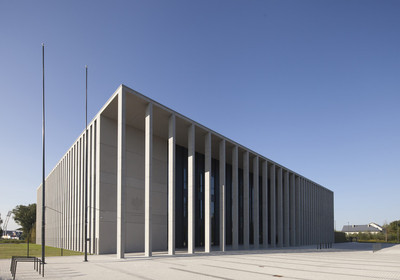

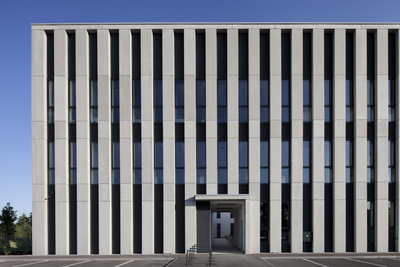

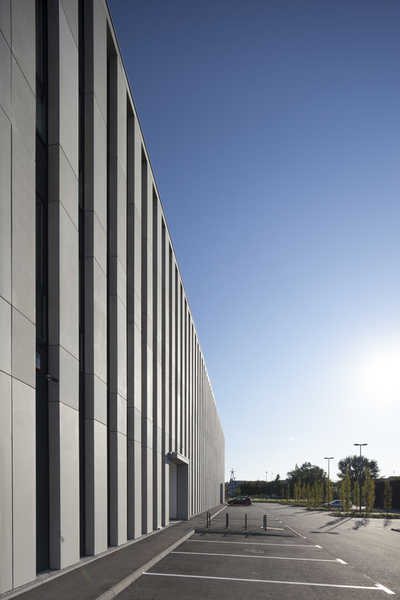

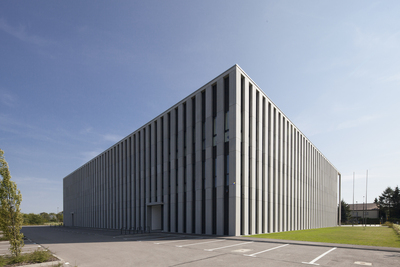

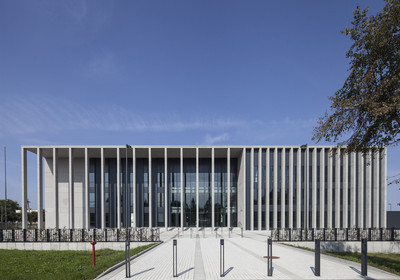

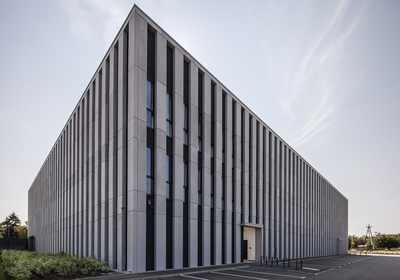

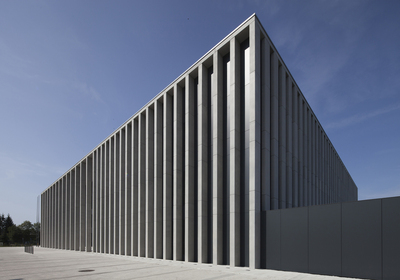

The Regional Court building complex is situated on a large, rectangular plot, within the area of Nowe Siedlce, at 31A Kazimierzowska Street. The original level of the plot was elevated by approximately 1m, due to a high level of the groundwater table. The platform obtained, meeting the level of the adjacent streets, serves as a basis for the new representative building. Three-story high Regional Court main building was designed as a single block with facades defined by a vertical rhythm of repeating columns turning smoothly into horizontal divisions of the front square dedicated to a public parking lot. Main entrance area was designed as a high corner porch leading to the main entrance. Within the block, two internal courtyards, accessible from the employees' parking lot at the back of the main building, were provided.

 © Bartłomiej Witczak

łmiej Witczak

区域法院主楼的功能安排与安保部门划分为不同出入级别的区域相对应。专门供公众使用的房间，如审判室、阅览室、土地登记册等，设计为可从开放、三层高的主大厅进入，也是主流通空间。办公室和行政室由出入控制系统覆盖，设计为与主大厅相连，但主要从位于主大楼后部的雇员区进入。

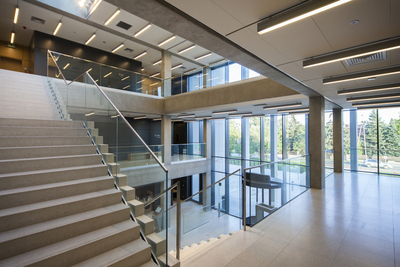

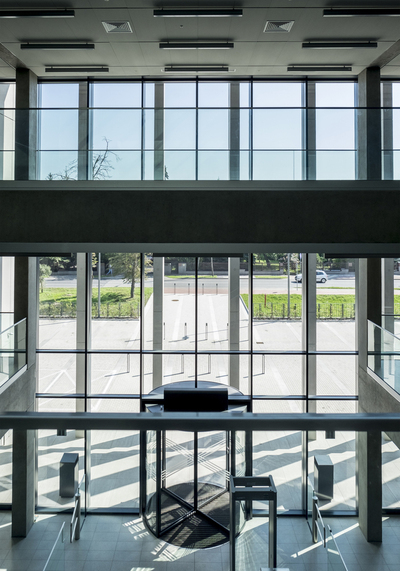

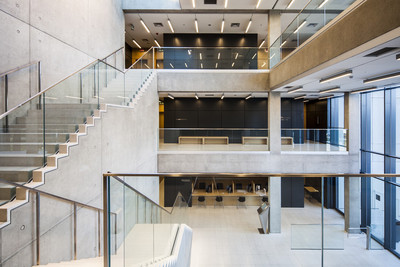

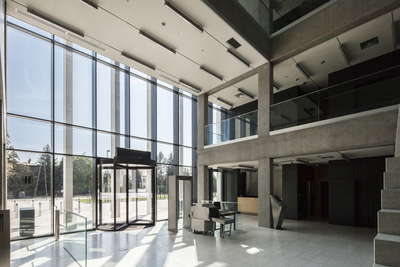

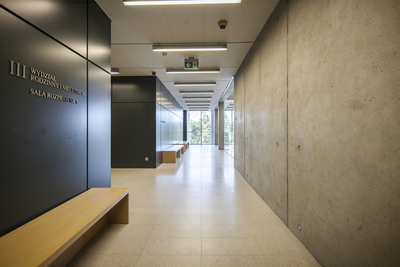

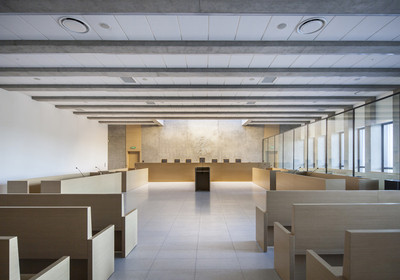

A functional arrangement of the Regional Court main building corresponds with a security division into zones with varying access levels. Rooms dedicated to public use, such as courtrooms, reading rooms, land registers were designed as accessible from the open, three-story high main lobby, is also the main circulation space. Office and administrative rooms, covered by an access control system, were designed as connected with the main lobby but primarily accessible from an employees’ area, situated at the back of the main building.

 © Bartłomiej Witczak

łmiej Witczak

设计的主要目的是要建造一座具有纪念意义的建筑，它可以很容易地与司法权力联系在一起，同时也能保持人们的友好。我们的目标是设计一套涉及法律稳定性的架构，同时提供所有法庭程序的充分透明度。建筑混凝土的使用是最重要的设计决策之一。在设计过程中，将建筑混凝土构件划分为内部构件-现场浇铸和外部浇铸-生产设施预制。所开发的设计解决方案使建筑物的主要结构得以有效执行，并确保了立面和道路要素的最佳质量。两种采用的技术的具体特点允许区分视觉内部和外部，通过相同的材料使用联系起来。最后的效果是两个技术供应商密切合作的结果。

The main objective of the design was to create a monumental building which could become easily associated with judiciary power and at the same time which would remain people friendly. Our goal was to design a piece of architecture which would refer to the stability of the law and at the same time which would provide full transparency of all court procedures. The use of architectural concrete was one of the most important design decisions. During design works architectural concrete elements were divided into internal ones - cast in situ and external ones - precast at the production facility. The developed design solution enabled efficient execution of the main structure of the building as well as ensured optimum quality of façade and road elements. Specific features of the two adopted technologies allowed to differentiate visually interior from exterior, linked by the same material use. The final effect is the outcome of close cooperation between two technology suppliers.

 © Bartłomiej Witczak

łmiej Witczak

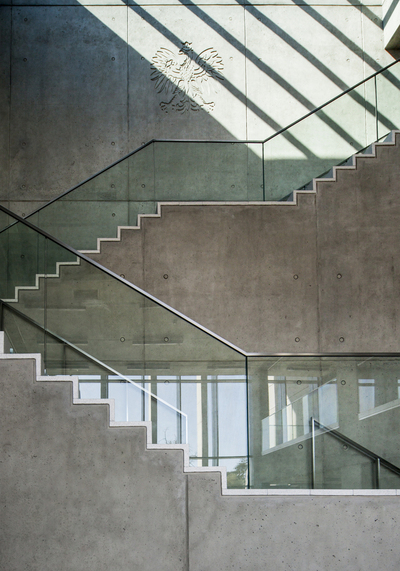

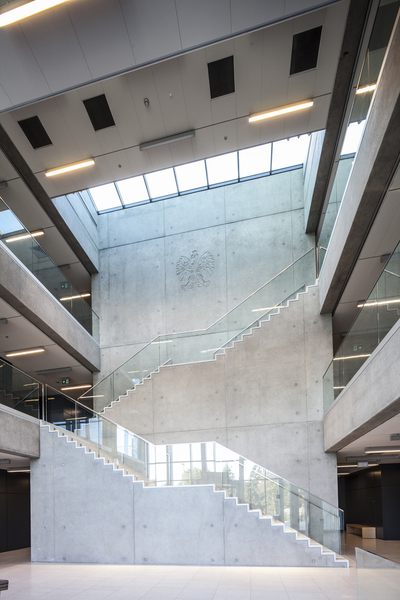

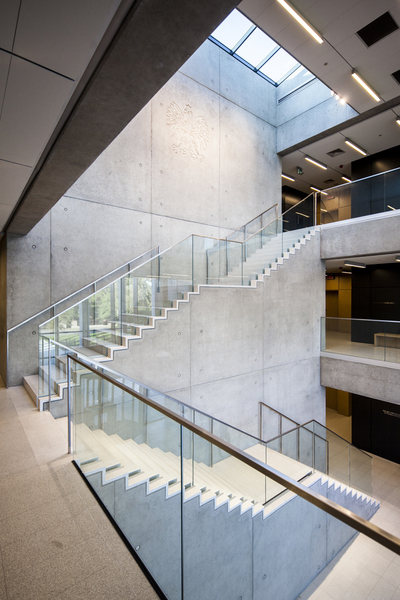

我们认为，以下建筑元素值得特别重视-轻型入口门廊，设计为由细长预制建筑混凝土柱支撑的预制建筑混凝土板，在现浇和预制建筑混凝土表面上的国徽再现。国徽复制，基于RECKLI弹性形式，由我们的团队完全设计，从草图开始，以三维模型作为结束，转换到数控铣床的文件中。

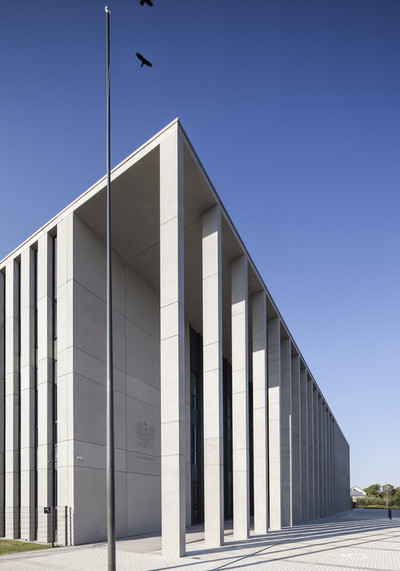

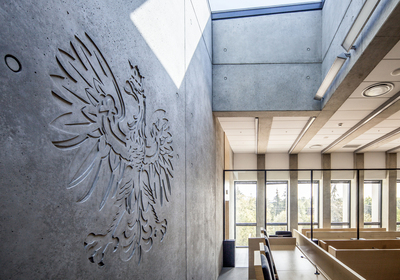

In our opinion, following building elements are worth paying special attention – light main entrance porch, designed as covered by precast architectural concrete slabs supported by slender precast architectural concrete columns, the national emblem reproduction both within cast in situ and precast architectural concrete surfaces. The national emblem reproduction, based on RECKLI elastic form, was fully designed by our team, starting with draft drawings and ending on 3D model transferred into the file for a CNC-mill.

Architects HRA Architects

Location Siedlce, Poland

Lead Architects Wojciech Hermanowicz, Błażej Hermanowicz, Stanisław Rewski, Michał Chrzanowski, Adam Wojtalik, Krzysztof Hajduczenia, Krzysztof Rewski, Tomasz Laskowski, Anna Kowal, Joanna Orkisz, Elżbieta Hermanowicz, Elżbieta Kozłowska

Area 7850.0 m2

Project Year 2016

Photographs Bartłomiej Witczak

Category Courthouse

Manufacturers Loading...
