架构师提供的文本描述。客户简介是设计一个自然疗法中心和瑜伽大厅在一个紧密的城市地点。事实上，这个中心本来是为了治疗和健康，但却必须在一个繁忙、嘈杂、污染严重的城市中设计，这是一个挑战。当我们访问该地点时，最令我们印象深刻的是一棵巨大的佳能球树(许多人都认为这是一棵神圣的树)，它定义了该站点的特征。这片土地的两侧还有一条非常繁忙的道路，这条道路构成了该市公路网的重要动脉。

Text description provided by the architects. The client brief was to design a naturopathy center with a yoga hall in a tight urban site. The fact that the center was meant for therapy and wellness but had to be designed in a busy, noisy, polluted node in the city was the challenge. What struck us most when we visited the location was the presence of a huge Canon Ball tree (a sacred tree by many accounts), which defined the character of the site.  The site was also flanked by a very busy road which forms an important artery in the city’s road network.

Text description provided by the architects. The client brief was to design a naturopathy center with a yoga hall in a tight urban site. The fact that the center was meant for therapy and wellness but had to be designed in a busy, noisy, polluted node in the city was the challenge. What struck us most when we visited the location was the presence of a huge Canon Ball tree (a sacred tree by many accounts), which defined the character of the site.  The site was also flanked by a very busy road which forms an important artery in the city’s road network.

 Courtesy of Cadence Architects

卡登斯建筑师的礼遇

 Detailed Section

详细科

 Courtesy of Cadence Architects

卡登斯建筑师的礼遇

这两个特点帮助我们制定了项目概念的生成图。我们决定设想这个计划，这样的话，建筑不仅会在现有的树周围编织，而且会以一种令人惊讶的方式成为体验的一部分。采取的第二个重要立场是用一层厚厚的绿色包裹大部分建筑物，同时对传统的监狱屏幕进行现代解读。然后，瑜伽馆被设想在露台上，有一根柱子，远离街道的喧嚣。

These two characteristics helped us formulate the generative diagram for the conception of the project. We decided to conceive the plan such that the building weaves around the existing tree not just physically but also phenomenally in a way that it becomes part of the experience. The second important stand taken was to wrap most of the building with a thick layer of green along with a modern interpretation of traditional jail screen. The yoga hall was then conceived to be on the terrace with a column free space away from the noise of the streets.

These two characteristics helped us formulate the generative diagram for the conception of the project. We decided to conceive the plan such that the building weaves around the existing tree not just physically but also phenomenally in a way that it becomes part of the experience. The second important stand taken was to wrap most of the building with a thick layer of green along with a modern interpretation of traditional jail screen. The yoga hall was then conceived to be on the terrace with a column free space away from the noise of the streets.

 Courtesy of Cadence Architects

卡登斯建筑师的礼遇

 Center Section

 Courtesy of Cadence Architects

卡登斯建筑师的礼遇

活皮肤-jali带绿色的想法是双重的。JALI屏幕将使我们能够从街道交通和城市的一般悍马车中削减刺耳的声音。它也会切断将渗入内部的强光。传统的jali在当代图案中被重新想象，以形成用于内部的轻质临时面纱。我们把生活注入了这个JALI公司，把它和一层凝结的药用植物并列在一起。JALI保护的植物不仅有助于治疗目的，而且有助于在内部形成柔软的环境。JALI由铁-混凝土构成，以实现所需的复杂图案。

Living skin – The idea of the jali with green was twofold. The jali screen would enable us to cut down the harsh sound from the street traffic and the general humdrum of the city. It would also cut the harsh light that would infiltrate the interiors. The traditional Jali was re-imagined in a contemporary pattern to form a light ephemeral veil for the interiors. We infused life into this jali buy juxtaposing it with a layer of curated medicinal plants. The plants protected by the jali not only help in therapeutic purposes but also help create a soft ambience in the interior. The jali was constructed out of ferro-concrete to enable the complex pattern desired.

Living skin – The idea of the jali with green was twofold. The jali screen would enable us to cut down the harsh sound from the street traffic and the general humdrum of the city. It would also cut the harsh light that would infiltrate the interiors. The traditional Jali was re-imagined in a contemporary pattern to form a light ephemeral veil for the interiors. We infused life into this jali buy juxtaposing it with a layer of curated medicinal plants. The plants protected by the jali not only help in therapeutic purposes but also help create a soft ambience in the interior. The jali was constructed out of ferro-concrete to enable the complex pattern desired.

 Courtesy of Cadence Architects

卡登斯建筑师的礼遇

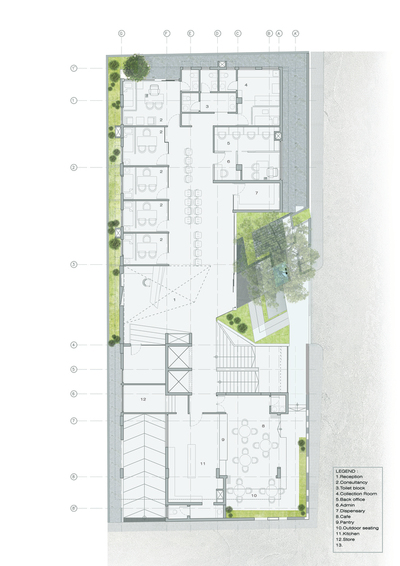

规划配置-一楼有接待处和病人等候区。会诊室、实验室和药房在候诊室周围工作。我们还包括一家有机餐厅和一个厨房在这个层次，这鼓励一般的福祉。顶层的楼层由各种治疗的治疗室以及住院病人的房间和套房组成。这些空间一直延伸到被果岭遮住的绿色地带。一个中庭穿过大楼，在视觉和空间上连接各个楼层。瑜伽厅和花园一起被放置在露台上，作为外溢区。

Programmatic Disposition – The ground floor has the reception along with waiting area for the patients.  The consultation rooms, labs and pharmacy work around the waiting area. We also included an organic restaurant along with a kitchen at this level which encourages general well being. The floors on top are comprised of therapy rooms with various treatments along with rooms and suites for in-patients. These spaces open up to the strip of green screened by the jali. An atrium cuts through the building to connect the various floors both visually and spatially.  The Yoga hall was positioned on the terrace along with the garden as spillover area.

Programmatic Disposition – The ground floor has the reception along with waiting area for the patients.  The consultation rooms, labs and pharmacy work around the waiting area. We also included an organic restaurant along with a kitchen at this level which encourages general well being. The floors on top are comprised of therapy rooms with various treatments along with rooms and suites for in-patients. These spaces open up to the strip of green screened by the jali. An atrium cuts through the building to connect the various floors both visually and spatially.  The Yoga hall was positioned on the terrace along with the garden as spillover area.

 Exploded view

Architects Cadence Architects

Location Bengaluru, Karnataka, India

Lead Architects Smaran Mallesh, Narendra Pirgal, Vikram Rajashekar

Project Year 2018

Category Healthcare Center
