Hepburn Spring Pods CBG Architects

2018-10-30 20:00
架构师提供的文本描述。该项目旨在吸引客人的到来,该项目涉及创建一系列的线性吊舱短期住宿在赫本泉。高耸在山顶的高跷上,仔细考虑以确保对地面的影响最小,导致最小的挖掘、破坏和脚印,可持续性和独特性是整个设计过程中的一个关键考虑因素。

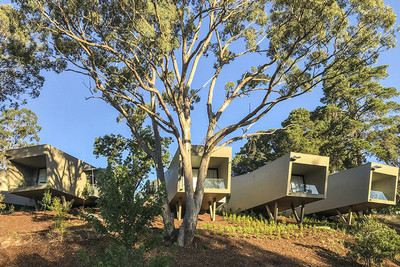

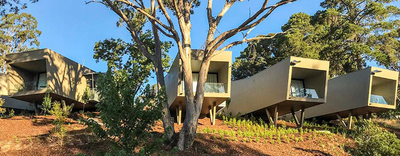

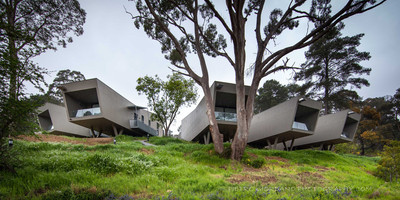

Text description provided by the architects. Designed to captivate guests upon arrival, this project involved the creation of an array of linear pods for short-term accommodation in Hepburn Springs. Perched high on stilts on top of the hill, careful consideration has been taken to ensure minimal impact to the ground, leading to minimal excavation, disruption and foot print, with sustainability and uniqueness a key consideration throughout the whole design.
Text description provided by the architects. Designed to captivate guests upon arrival, this project involved the creation of an array of linear pods for short-term accommodation in Hepburn Springs. Perched high on stilts on top of the hill, careful consideration has been taken to ensure minimal impact to the ground, leading to minimal excavation, disruption and foot print, with sustainability and uniqueness a key consideration throughout the whole design.

每个单独的POD都是单层的,可以容纳两个人。一个卧室的房间有59平方米的内部面积和16平方米的外部空间,还有一个很大的阳台,面积为12.4平方米。他们的特色是一个大理石的双人水疗中心,位于一个开放式的计划卧室里,直接对面是一个双面的燃气壁炉,可以享受床、水疗或休息室的乐趣。他们还配有一张特大床、双淋浴、设备齐全的厨房和设计师内部。精心考虑和使用具有暖色调的自然纹理和材料的混合物,以创建最终的放纵休息,以及为客人提供总的隐私。

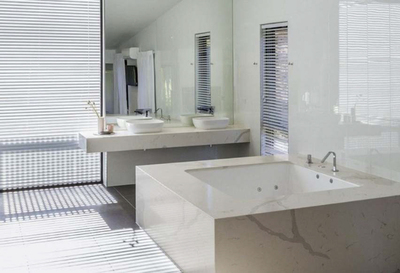

Each individual pod is single level, allowing for accommodation for two people.  The one bedroom accommodation features 59sqm of internal area and 16sqm of external space, plus a large balcony of 12.4sqm. They feature a marbled twin spa that sits within an open plan bedroom directly opposite a double-sided gas log fire that can be enjoyed from either the bed, spa or lounge. They also feature a king size bed, double shower, fully equipped kitchen and designer interiors. A mixture of natural textures and materials with warm hues have been carefully considered and used throughout to create the ultimate indulgent break, and total privacy for guests.
Each individual pod is single level, allowing for accommodation for two people.  The one bedroom accommodation features 59sqm of internal area and 16sqm of external space, plus a large balcony of 12.4sqm. They feature a marbled twin spa that sits within an open plan bedroom directly opposite a double-sided gas log fire that can be enjoyed from either the bed, spa or lounge. They also feature a king size bed, double shower, fully equipped kitchen and designer interiors. A mixture of natural textures and materials with warm hues have been carefully considered and used throughout to create the ultimate indulgent break, and total privacy for guests.
赫本温泉地区提供了大量的商业,短期居住选择,这意味着这个项目需要一个额外的优势,它的设计,为客人提供一个不同点,并确保商业成功。这是通过从主干道到达时为客人创造的吊舱视觉设计的影响来实现的,也是通过它为客人提供一种方式在他们停留在吊舱期间与大自然建立联系的能力来实现的。这是一个难得的设计和交付商业地产的机会,它是对景观及其自然环境的补充和延伸,而豆荚本身也受到景观和风景本身的启发。
The Hepburn Springs area offers a high number of commercial, short-term residential stay options which meant this project needed an additional edge to its design to provide a point of difference for guests and to ensure commercial success. This was achieved through the pod visual design impact created for guests upon arrival from the main road and through its ability to provide a way for guests to connect with nature during their stay at the pods. This was a rare opportunity to design and deliver a commercial property that complimented and became an extension of the landscape and its natural surroundings with the pods themselves inspired from the landscape and scenery itself.
The Hepburn Springs area offers a high number of commercial, short-term residential stay options which meant this project needed an additional edge to its design to provide a point of difference for guests and to ensure commercial success. This was achieved through the pod visual design impact created for guests upon arrival from the main road and through its ability to provide a way for guests to connect with nature during their stay at the pods. This was a rare opportunity to design and deliver a commercial property that complimented and became an extension of the landscape and its natural surroundings with the pods themselves inspired from the landscape and scenery itself.

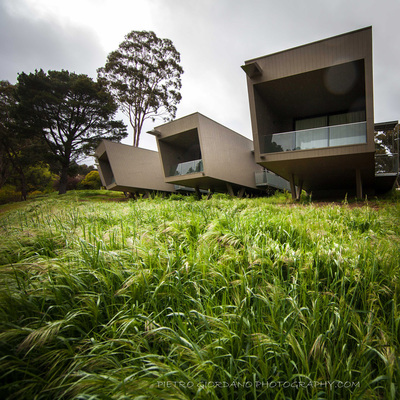

 © Pietro Giordano
.Pietro Giordano
每个吊舱的建造都考虑到了可持续性。在高跷上设计了单层结构,以尽量减少周围景观上的足迹,并在整个过程中纳入了一些ESD元素。此外,还建造了这些设施,以确保对周围乡村的放松,使客人能够享受到进入自然环境的乐趣,进而促进放松、沉思和恢复活力。创造一个可持续的环境对客户来说至关重要。至关重要的是,在整个过程中保护现有景观,包括最后设计和实际建造吊舱。可持续性是通过使用建筑设计的水喷口来实现和支持的,它将雨水引导到一个自然过滤的网状系统中。这允许在景观上重复使用的集水。其他可持续性特征包括用于发电的光伏电池、用于太阳能控制的生活区的大屋檐以及允许交叉通风的开放式设计。
Each pod has been built with sustainability in mind.  The single level structure has been designed on stilts to minimise the footprint on the surrounding landscape and a number of ESD elements have been incorporated throughout.  They have also been built to ensure relaxing views of the surrounding countryside, allowing guests to enjoy being transported into the natural environment and in turn, promoting relaxation, contemplation and rejuvenation.   Creating a sustainable environment was of utmost important to the client. It was crucial that the existing landscape was protected throughout the whole process, including the final design and actual construction of the pods.  Sustainability has been achieved and supported through the use of architecturally designed water spouts that direct rainwater into a naturally filtered reticulation system. This allows for water harvesting that is re-used on the landscape. Other sustainability features include photovoltaic cells for electricity generation, large eaves in living areas for solar control and open design to allow for cross ventilation.
Each pod has been built with sustainability in mind.  The single level structure has been designed on stilts to minimise the footprint on the surrounding landscape and a number of ESD elements have been incorporated throughout.  They have also been built to ensure relaxing views of the surrounding countryside, allowing guests to enjoy being transported into the natural environment and in turn, promoting relaxation, contemplation and rejuvenation.   Creating a sustainable environment was of utmost important to the client. It was crucial that the existing landscape was protected throughout the whole process, including the final design and actual construction of the pods.  Sustainability has been achieved and supported through the use of architecturally designed water spouts that direct rainwater into a naturally filtered reticulation system. This allows for water harvesting that is re-used on the landscape. Other sustainability features include photovoltaic cells for electricity generation, large eaves in living areas for solar control and open design to allow for cross ventilation.

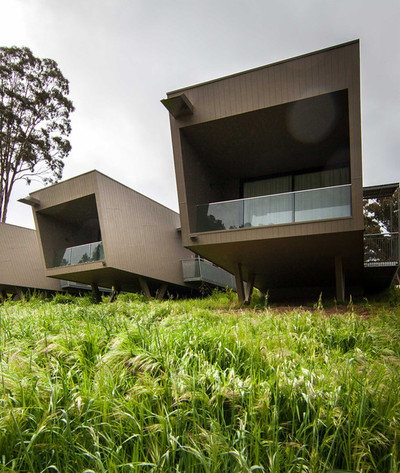

 © Pietro Giordano
.Pietro Giordano

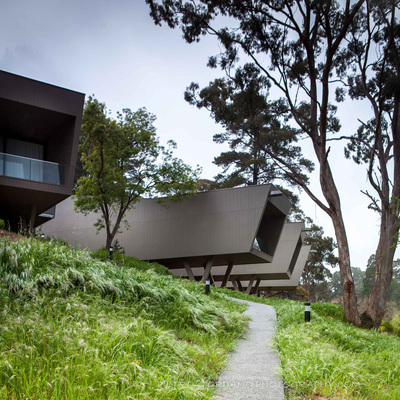

 © Pietro Giordano
.Pietro Giordano
通往主干道的大斜坡路堤和现场现有的自然景观创造了一个设计建筑形式的机会,这些形式既有功能,也有视觉效果令人叹为观止。这一重要的斜坡需要额外的规划,但允许建造大型的悬臂形式,在经过主要通道到达时立即产生视觉影响。同时,设计需要确保每个吊舱/别墅都有足够的隐私,同时融入尽可能多的自然环境。吊舱/别墅的高架设计和位置允许隐私,而吊舱的个性化意味着客人可以直接放置在自然环境中。

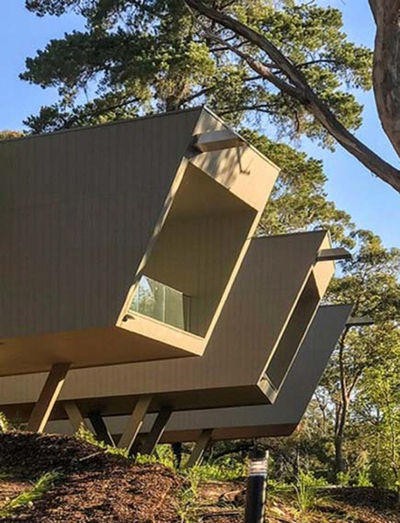

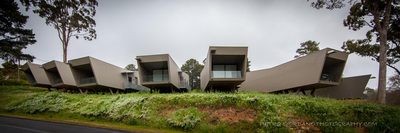

The large, sloping embankment to the main road, and existing natural landscape to the site, created an opportunity to design built forms that were both functional and visually stunning. The significant slope required additional planning, but allowed for large extended cantilevered forms to be built, creating an immediate visual impact on arrival via the main access road. Simultaneously, the design needed to ensure that each pod/villa had sufficient privacy while incorporating as much of the natural environment.  The elevated design and position of the pods/villas allows for privacy and the individual nature of the pods means guests can be placed directly within the natural surroundings.
The large, sloping embankment to the main road, and existing natural landscape to the site, created an opportunity to design built forms that were both functional and visually stunning. The significant slope required additional planning, but allowed for large extended cantilevered forms to be built, creating an immediate visual impact on arrival via the main access road. Simultaneously, the design needed to ensure that each pod/villa had sufficient privacy while incorporating as much of the natural environment.  The elevated design and position of the pods/villas allows for privacy and the individual nature of the pods means guests can be placed directly within the natural surroundings.
 Elevation + Floor plan
立面平面图
在项目开发阶段对这些吊舱的设计和规划仍然符合最初的概念和意图,这在设计商业开发时是相当罕见的。这10个建造的吊舱的最终结果与最初与客户协商的项目的最初概念设计非常相似。在设计过程中为该地区引入了新的防火区条例,因此必须确保所有团队成员都接受新规则的教育,以确保最终成品符合设计要求,这就需要额外的规划。重要的是,通过这些法规变更,设计意图仍然能够得到维护。
Design and planning for these pods through the project development stages remained true to the original concept and intent, which is fairly rare when designing a commercial development.  The end result of the 10 built pods heavily resembled the original concept design from the projects initial consultation with the client. New fire zone regulations for the area were introduced during the design process, making it critical to ensure that all team members were educated on the new regulations to guarantee design compliance in the final finished product and this required additional planning.  Importantly the design intent was still able to be maintained through these regulatory changes.
Design and planning for these pods through the project development stages remained true to the original concept and intent, which is fairly rare when designing a commercial development.  The end result of the 10 built pods heavily resembled the original concept design from the projects initial consultation with the client. New fire zone regulations for the area were introduced during the design process, making it critical to ensure that all team members were educated on the new regulations to guarantee design compliance in the final finished product and this required additional planning.  Importantly the design intent was still able to be maintained through these regulatory changes.
