Block House nimtim architects

2018-11-05 02:00

 © French + Tye

(法语Tye)

架构师提供的文本描述。尼姆被一个年轻的家庭找到了，他最近在斯托克纽顿买了一栋维多利亚式的露台。该房屋处于失修状态，优先考虑升级和创造开放式的底层家庭空间。现有的倾斜温室被拆除，以便有一个新的侧边扩建.Nimtim在房子的中心引入了一个双高的内部庭院，一边是玻璃砌块墙，另一边是开放的屋顶灯。

Text description provided by the architects. nimtim were approached by a young family who had recently bought an end-of-terrace Victorian house in Stoke Newington. The house was in a state of disrepair and priority was placed on upgrading and creating an open plan ground floor family space. The existing lean-to conservatory was demolished to allow for a new side extension. Nimtim introduced a double height internal courtyard to the center of the house with a glass block wall to one side and an opening roof light above.

Text description provided by the architects. nimtim were approached by a young family who had recently bought an end-of-terrace Victorian house in Stoke Newington. The house was in a state of disrepair and priority was placed on upgrading and creating an open plan ground floor family space. The existing lean-to conservatory was demolished to allow for a new side extension. Nimtim introduced a double height internal courtyard to the center of the house with a glass block wall to one side and an opening roof light above.

 © French + Tye

(法语Tye)

 Axonometry

 © French + Tye

(法语Tye)

这个空间作为整个房子的焦点，组织和编排围绕它的空间：将光线和通风带到屋子的那些可能是黑暗和无气的地方。庭院以不同的方式表达；借用花园中的材料以将其与居住空间区分开来，将其身份加强为概念上的外部空间。成本有效且耐用的材料，更经常涉及工业而非国内建筑，用于创造温暖和轻盈的品质。

This space acts as a focal point for the entire house, organizing and choreographing the spaces around it: bringing light and ventilation to the parts of the house that might otherwise be dark and airless. The courtyard is expressed differently; borrowing materials from the garden to distinguish it from the living spaces, reinforcing its identity as a conceptually external space. Cost effective and robust materials, more often associated with industrial rather than domestic architecture, are used to create a quality of warmth and lightness.

This space acts as a focal point for the entire house, organizing and choreographing the spaces around it: bringing light and ventilation to the parts of the house that might otherwise be dark and airless. The courtyard is expressed differently; borrowing materials from the garden to distinguish it from the living spaces, reinforcing its identity as a conceptually external space. Cost effective and robust materials, more often associated with industrial rather than domestic architecture, are used to create a quality of warmth and lightness.

 © French + Tye

(法语Tye)

扩建区的结构墙都是用灰色水泥砌块建造的，外面有裸露的骨料-冰铜，内部抛光。喷砂玻璃块内部形成一种扩散的光，强调空间的半透明。这些发光在夜间从内部照明的空间，照亮和打破暴露的侧壁。欧洲橡木地板，陶瓷砖，软粉红混凝土厨房工作间也为室内空间增添了温暖和空灵的品质。

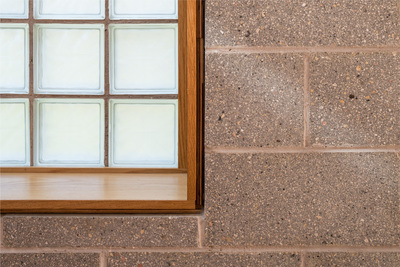

The structural walls of the extension are all built in grey cement block with exposed aggregates - matte on the outside and polished internally. The sand-blasted glass blocks create a diffused light internally and emphasize the translucency of the space. These glow at night from the internally lit space, illuminating and breaking up the exposed side flank wall. European Oak flooring, terracotta tiles, and the soft pink concrete kitchen worktops also add warmth and an ethereal quality to the interior space.

The structural walls of the extension are all built in grey cement block with exposed aggregates - matte on the outside and polished internally. The sand-blasted glass blocks create a diffused light internally and emphasize the translucency of the space. These glow at night from the internally lit space, illuminating and breaking up the exposed side flank wall. European Oak flooring, terracotta tiles, and the soft pink concrete kitchen worktops also add warmth and an ethereal quality to the interior space.

 © French + Tye

(法语Tye)

 Section A - Existing and Proposed

A节-现有和拟议

使用对比材料，如橡木和陶土的泥土质地，用于地板和明亮的轻材料，如玻璃和抛光混凝土块，用于信封，共同努力形成一个和谐和现代调色板。在后方，一个大面固定的滑动门允许大部分后立面打开到新的花园。该项目创造了一个新的家庭住宅，在使用材料方面大胆而诚实，同时也保留了客户和他们年幼的孩子所接受的温暖和家庭生活的感觉。

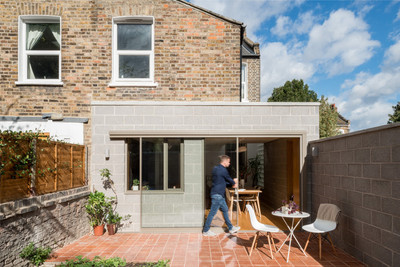

Use of contrasting materials, such as the earthy texture of the oak and terracotta used for the floor and light bright materials, such as glass and polished concrete blocks used for the envelope, work together to form a harmonious and contemporary palette. At the rear, a large face-fixed sliding door allows most of the rear elevation to open out onto the new garden. The project has created a new family home that is bold and honest in its use of materials whilst retaining a sense of warmth and domesticity which the clients and their young children have embraced.

Use of contrasting materials, such as the earthy texture of the oak and terracotta used for the floor and light bright materials, such as glass and polished concrete blocks used for the envelope, work together to form a harmonious and contemporary palette. At the rear, a large face-fixed sliding door allows most of the rear elevation to open out onto the new garden. The project has created a new family home that is bold and honest in its use of materials whilst retaining a sense of warmth and domesticity which the clients and their young children have embraced.
