Puukuokka Housing Block OOPEAA

2018-11-08 14:00
 © Mikko Auerniitty
Mikko Auerniitty
架构师提供的文本描述。普库科卡是芬兰第一座八层高的木公寓楼。它是与Lakea合作开发的,是一套节能的三层木结构公寓,位于郭卡拉的Jyv skyl郊区,毗邻国卡拉教堂,也是由OOPEAA设计的。
Text description provided by the architects. Puukuokka is the first eight-story heigh wooden apartment building in Finland. Developed in collaboration with Lakea, it is an energy-efficient trio of multi-story timber-framed flats in the Jyväskylä suburb of Kuokkala, neighboring the Kuokkala church also designed by OOPEAA.
Text description provided by the architects. Puukuokka is the first eight-story heigh wooden apartment building in Finland. Developed in collaboration with Lakea, it is an energy-efficient trio of multi-story timber-framed flats in the Jyväskylä suburb of Kuokkala, neighboring the Kuokkala church also designed by OOPEAA.

随着蒲果甲三楼的建成,形成普果果卡大厦的多层木质公寓楼的节能生态三位一体已经建成,普克乌卡住宅受到了居民们的好评,他们称赞它创造了一个舒适的居住环境,为一个友好的、社会稳定的社区提供了一个良好的框架。

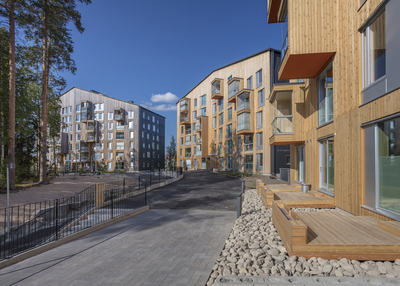

With the completion of Puukuokka Three, the energy-efficient and ecological trio of multi-story wooden apartment buildings forming the Puukuokka Block is now complete.The Puukuokka housing has been extremely well received by the residents who praise it for creating a comfortable living environment with an excellent framework for a friendly and socially stable neighborhood.
With the completion of Puukuokka Three, the energy-efficient and ecological trio of multi-story wooden apartment buildings forming the Puukuokka Block is now complete.The Puukuokka housing has been extremely well received by the residents who praise it for creating a comfortable living environment with an excellent framework for a friendly and socially stable neighborhood.
 © Mikko Auerniitty
Mikko Auerniitty
普库科卡公寓楼提供184户家庭的住宅,从各种年龄的单身居民到有孩子的家庭。普库科卡一号于2015年完工,是芬兰第一栋8层高的木公寓楼。普库科卡两栋于2017年完工,普库科卡三栋于2018年8月完工。

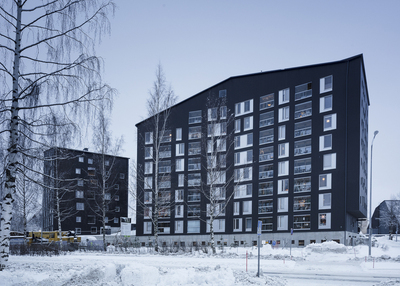

The Puukuokka complex offers homes for 184 households from single dwellers of all ages to families with children. Finished in 2015, Puukuokka One was the first eight-story high wooden apartment building in Finland. Puukuokka Two was completed in 2017, and Puukuokka Three in August 2018.
The Puukuokka complex offers homes for 184 households from single dwellers of all ages to families with children. Finished in 2015, Puukuokka One was the first eight-story high wooden apartment building in Finland. Puukuokka Two was completed in 2017, and Puukuokka Three in August 2018.
 © Mikko Auerniitty
Mikko Auerniitty
Puukuokka探索模块化预制CLT建筑的潜力,以提供对环境负责和高质量的负担得起的住房。普库科卡试图最大限度地利用CLT的技术和美学品质,创造出一座大型木结构建筑,并有其独特的建筑表现形式。这个街区还尝试了一种创新的租赁融资战略,旨在通过促进稳定的社区来支持社会的可持续性。
Puukuokka explores the potential of modular prefabricated CLT construction to provide environmentally responsible and affordable housing of high quality. Puukuokka attempts to make the best possible use of the technical and aesthetic qualities of CLT and to create a wooden building in large scale with a distinct architectonic expression of its own. The block also pilots an innovative lease-to-own financing strategy that aims to support social sustainability by promoting stable communities.
Puukuokka explores the potential of modular prefabricated CLT construction to provide environmentally responsible and affordable housing of high quality. Puukuokka attempts to make the best possible use of the technical and aesthetic qualities of CLT and to create a wooden building in large scale with a distinct architectonic expression of its own. The block also pilots an innovative lease-to-own financing strategy that aims to support social sustainability by promoting stable communities.
 Axonometric


以Puukuokka为例,开发和测试了一个基于CLT的容积模块系统,该系统的整个承载结构和框架都是由大量的木材制成,并由预制的容积CLT模块组成。每套公寓由两个单元组成,一个是客厅、阳台和卧室,另一个是浴室、厨房和门厅。

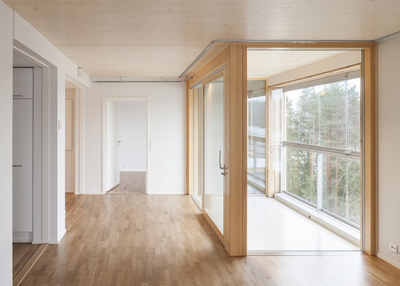

Puukuokka served as a pilot case to develop and test a CLT based system of volumetric modules. The entire load bearing structure and frame of the Puukuokka buildings is made of massive wood and composed of prefabricated volumetric CLT modules. Each apartment is composed of two modules, one housing the living room, the balcony and the bedroom, the other housing the bathroom, the kitchen and the foyer area.
Puukuokka served as a pilot case to develop and test a CLT based system of volumetric modules. The entire load bearing structure and frame of the Puukuokka buildings is made of massive wood and composed of prefabricated volumetric CLT modules. Each apartment is composed of two modules, one housing the living room, the balcony and the bedroom, the other housing the bathroom, the kitchen and the foyer area.
 © Mikko Auerniitty
Mikko Auerniitty
街区结构将独居住宅的隐私意识与公寓楼共用空间的半公益性结合起来。其愿景是为居民提供丰富的体验性的功能空间。这三座建筑聚集在一起,形成一个街区,与芬兰Jyv skyl的Kuokkala社区相辅相成。它强调城市和周围的自然景观的联系,山和湖。与OOPEAA在2010年设计的邻近的郭卡拉教堂一起,它构成了该社区的一个焦点。

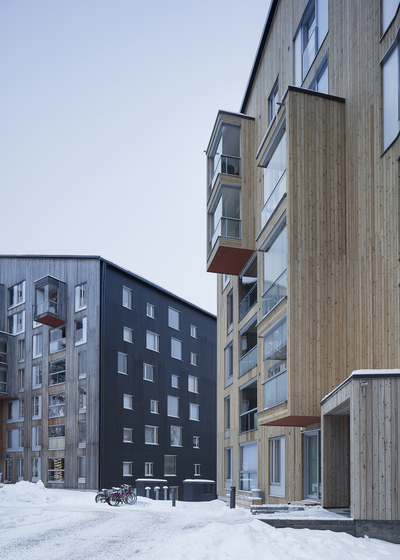

The block structure combines the sense of privacy of single-family dwellings with the semi-public character of the shared spaces of an apartment building. The vision is to provide the residents with a functional space that is rich in experiential qualities. The three buildings come together to form a block that complements the Kuokkala neighborhood in Jyväskylä, Finland. It puts an emphasis on the connection between the city and the surrounding natural landscape of hills and the lake. Together with the adjacent Kuokkala Church designed by OOPEAA in 2010 it forms a focal point for the neighborhood.
The block structure combines the sense of privacy of single-family dwellings with the semi-public character of the shared spaces of an apartment building. The vision is to provide the residents with a functional space that is rich in experiential qualities. The three buildings come together to form a block that complements the Kuokkala neighborhood in Jyväskylä, Finland. It puts an emphasis on the connection between the city and the surrounding natural landscape of hills and the lake. Together with the adjacent Kuokkala Church designed by OOPEAA in 2010 it forms a focal point for the neighborhood.
与CLT的合作使项目的几个重要方面得以实现:它使我们有可能创建一个宽敞的走廊和中庭空间,以节能的方式作为半温暖的空间来实现大量的光。大量木材的绝缘质量允许独立地控制各个单元的温度。预制容积CLT模块的使用使走廊壁结构的热、水、电和通风管道得以集成,便于维修。这一安排还允许有效地组织该计划。

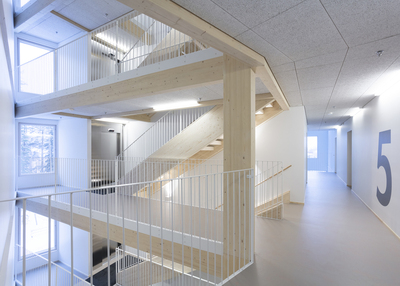

Working with CLT enabled several important aspects in the project: It made it possible to create a spacious hallway and atrium space with a lot of light realized in an energy efficient manner as a semi-warm space. The insulating qualities of massive wood allow for controlling the temperature of the individual units independently. The use of prefabricated volumetric CLT modules made it possible to integrate the piping for heat, water, electricity and ventilation in the wall structure in the hallway making it easily accessible for maintenance. This arrangement also allows for an efficient organization of the plan.
Working with CLT enabled several important aspects in the project: It made it possible to create a spacious hallway and atrium space with a lot of light realized in an energy efficient manner as a semi-warm space. The insulating qualities of massive wood allow for controlling the temperature of the individual units independently. The use of prefabricated volumetric CLT modules made it possible to integrate the piping for heat, water, electricity and ventilation in the wall structure in the hallway making it easily accessible for maintenance. This arrangement also allows for an efficient organization of the plan.
CLT模块是在离现场不到两个小时的地方工厂预制的。预制组件的使用使每栋建筑的施工时间减少到6个月,并减少了对天气条件的暴露,从而有可能在最终结果中取得更高的质量。
The CLT modules are prefabricated in a local factory less than two hours away from the site. The use of prefabricated modules made it possible to cut the construction time on site down to six months per building and to reduce the exposure to weather conditions making it possible to achieve a higher quality in the end result.
The CLT modules are prefabricated in a local factory less than two hours away from the site. The use of prefabricated modules made it possible to cut the construction time on site down to six months per building and to reduce the exposure to weather conditions making it possible to achieve a higher quality in the end result.














































Architects OOPEAA
Location 40100 Jyväskylä, Finland
Architect in Charge Anssi Lassila
Project Architects Juha Pakkala (construction stage),
 Iida Hedberg (design process stage), Jussi-Pekka Vesala (master plan stage)
Other Team Members Teemu Leppälä, Mia Salonen, Teemu Hirvilammi, Hanna-Kaarina Heikkilä, Santtu Hyvärinen
Area 18650.0 m2
Project Year 2015
Photographs Mikko Auerniitty, Toni Kekki
Category Apartments
Manufacturers Loading...
