Kamyaran House Gozar Architectural Design Studio

2018-11-16 01:00
 © Aram Alkanaan
阿拉姆碱
架构师提供的文本描述。从事农业工作的小城镇人民面临的根本挑战是城乡生活的二分法。这些人中的大多数人在城市里从事某种服务工作,同时从事他们祖先的职业。他们倾向于利用与城市生活相关的进步的可能性,同时梦想着生活在农村的怀旧。在“Kamyaran House”项目中,生活的两极[以及雇主的愿望]是设计过程的基础。
Text description provided by the architects. The fundamental challenge of the peoples of small towns with agricultural careers is the dichotomy between urban and rural life. The Majority of these people have some kind of service job in the city and practice their ancestors’ occupations at the same time. They tend to use the possibilities the progress associated with urban life, and at the same time, dream for the nostalgia of living in the countryside. In the "Kamyaran House" project, the bipolarity of life [and, in fact, the wishes of the employer] has been the foundation of the design process.
Text description provided by the architects. The fundamental challenge of the peoples of small towns with agricultural careers is the dichotomy between urban and rural life. The Majority of these people have some kind of service job in the city and practice their ancestors’ occupations at the same time. They tend to use the possibilities the progress associated with urban life, and at the same time, dream for the nostalgia of living in the countryside. In the "Kamyaran House" project, the bipolarity of life [and, in fact, the wishes of the employer] has been the foundation of the design process.
 © Aram Alkanaan
阿拉姆碱
通过查看村里雇主的住宅,确定了与农村生活相关的四种基本的物理空间模式:第一,走廊作为中间空间,面向房屋的主庭院,对于在白天温暖的季节聚集家庭成员非常重要。然后,卫生布局的模式似乎很重要,因为该地区的人坚持厕所应该在住宅区外面和院子的角落。
By examining the employer's dwelling houses in the village, four basic physical-spatial patterns that were linked to rural life were identified: First, the model of the verandah, whose presence as a middle space, faces the main courtyard of the house, is very important for gathering family members in the warm seasons during the day. Then the pattern of the sanitary lay-out seems important because people in the area insist that the toilet should be outside the residential area and in the corner of the yard.
By examining the employer's dwelling houses in the village, four basic physical-spatial patterns that were linked to rural life were identified: First, the model of the verandah, whose presence as a middle space, faces the main courtyard of the house, is very important for gathering family members in the warm seasons during the day. Then the pattern of the sanitary lay-out seems important because people in the area insist that the toilet should be outside the residential area and in the corner of the yard.

即使在Kamyaran市的许多现代公寓里,卫生间的门都打开到单元之间的公共走廊上!另一方面,院子的图案被认为是儿童玩耍、宗教仪式和古代庆祝活动的一个大空间,比如去年星期三(Charashanbeh-souri)和nowruz的夜晚,宗教仪式,如唱歌的颂歌不能被忽略。最后,关于雇主的父亲的职业,他是一个地毯零售商,是一个大的私人房间,它是一个巨大的私人房间,有一个巨大的橱柜,在一个面朝农业土地的角落,覆盖着丰富多彩的地毯和地毯,项目的最后一个循环已经完成。
Even in many modern apartments in the city of Kamyaran, the toilet door opens to the communal corridor between units! On the other hand, the pattern of the yard, which was considered a great space for children's play, ritual ceremonies and ancient celebrations such as Last Wednesday of the year (Charshanbeh-souri) and the night of Nowruz, religious ceremonies such as the singing carols could not be ignored. Finally, regarding the occupation of the employer’s father, who was a carpet retailer, the pattern of the closet and the place of recluse for the father, which was a large private room with a colossal cupboard on a corner facing a vast view of the agricultural lands and covered with colorful carpets and rugs, the last loop of the project was completed.
Even in many modern apartments in the city of Kamyaran, the toilet door opens to the communal corridor between units! On the other hand, the pattern of the yard, which was considered a great space for children's play, ritual ceremonies and ancient celebrations such as Last Wednesday of the year (Charshanbeh-souri) and the night of Nowruz, religious ceremonies such as the singing carols could not be ignored. Finally, regarding the occupation of the employer’s father, who was a carpet retailer, the pattern of the closet and the place of recluse for the father, which was a large private room with a colossal cupboard on a corner facing a vast view of the agricultural lands and covered with colorful carpets and rugs, the last loop of the project was completed.
 © Aram Alkanaan
阿拉姆碱

 © Aram Alkanaan
阿拉姆碱
Bayezprneh河沿Kamyaran市的南北轴线运行.该项目区位于河的最宽部分(“城市湖”),因此其西部与河流平行。根据土地的位置及其小尺度,对城市住宅小区进行了四种类型的农村住宅布局。
The Bayezprneh River runs along the north-south axis of Kamyaran City. The project area is situated on the broadest part of the river ("Lake of the City") so that its western part is parallel to the river. Based on the location of the land and its small dimensions, we arranged four patterns of rural house levels in the urban housing section.
The Bayezprneh River runs along the north-south axis of Kamyaran City. The project area is situated on the broadest part of the river ("Lake of the City") so that its western part is parallel to the river. Based on the location of the land and its small dimensions, we arranged four patterns of rural house levels in the urban housing section.

我们使用二级切割碎石,这更类似于未经处理的岩石用于村庄的房子。对于着色器,我们使用了Cheekh,一个本地的阴影。彩色和有阴影的眼镜,以及谢赫,表现出不同的行为,随着季节和时间的变化。
We use second grade cut-broken stones which was more similar to the untreated rocks used for the village houses. And for shaders, we used Cheekh, a native shading. Colored and shaded glasses along with Cheekh show different behaviors with changing seasons and hours.
We use second grade cut-broken stones which was more similar to the untreated rocks used for the village houses. And for shaders, we used Cheekh, a native shading. Colored and shaded glasses along with Cheekh show different behaviors with changing seasons and hours.
 © Aram Alkanaan
阿拉姆碱
猎豹最初是用山羊的头发编织的一种天然的顶盖。它是防水的,并且具有对阳光的长期耐受性。山羊的头发也有一些有趣的特性:在温暖的季节它是松散的,而吸管是间隔开的,允许空气流入里面,在寒冷的季节,它收缩,把吸管一起阻塞气流。它是抵御秋雨和寒冬天气影响的绝缘子。此外,猎豹的存在使太阳的辐射受到控制。

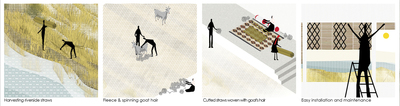

Cheekh is originally a kind of native roof-cover woven with goat's hair. It is water proof and has a long-term resistance to direct sunlight. Goat's hair also has interesting properties: it is loose in the warm season and the straws are spaced apart allowing the air to flow inside, and it contracts in the cold season pulling the straws together blocking airflow. It acts as an insulator against falling autumn rains and cold winter weather influences. Also, the presence of cheekh causes the sun's radiation to be controlled.
Cheekh is originally a kind of native roof-cover woven with goat's hair. It is water proof and has a long-term resistance to direct sunlight. Goat's hair also has interesting properties: it is loose in the warm season and the straws are spaced apart allowing the air to flow inside, and it contracts in the cold season pulling the straws together blocking airflow. It acts as an insulator against falling autumn rains and cold winter weather influences. Also, the presence of cheekh causes the sun's radiation to be controlled.
 © Aram Alkanaan
阿拉姆碱
 Diagram 02
Diagram 02
 © Aram Alkanaan
阿拉姆碱


























Architects Gozar Architectural Design Studio
Location Kamyaran, Iran
Lead Architects Rashed Azizi, Mohammad Kazerani
Area 255.0 m2
Project Year 2018
Photographs Aram Alkanaan
Category Houses
Manufacturers Loading...
