IF House Martins Lucena Arquitetos

2018-11-22 12:00
 © Maíra Acayaba
c.Maíra Acayaba
架构师提供的文本描述。位于纳塔尔-RN市一栋住宅共管公寓内的420平方米的单身家庭住宅项目,以一种大胆而优雅的方式服务于欢迎一对带着两个孩子的年轻夫妇。该项目的设计开始于创造大房间的意图,舒适地促进住宅的外部和内部之间的对话,使用一种受国际风格启发的建筑语言。采纳方以室内和室外区域之间的一体化以及空间和视觉流动为指导,以符合生物气候条件。

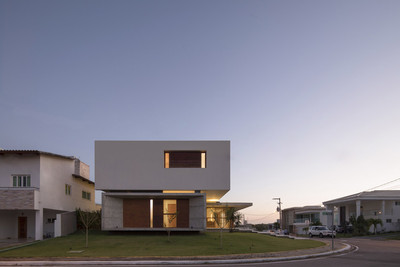

Text description provided by the architects. The single-family housing project with 420 m², located in a residential condominium in the city of Natal- RN, served in a bold and elegant way the purpose of welcoming a young couple with two children. The project design started from the intention of creating large rooms which comfortably would promote dialogue between the exterior and the interior of the residence, using an architectural language inspired by international style. The adopted party was guided by integration and spatial and visual flow between the indoor and outdoor areas, with a view to compliance with the bioclimatic conditions.
Text description provided by the architects. The single-family housing project with 420 m², located in a residential condominium in the city of Natal- RN, served in a bold and elegant way the purpose of welcoming a young couple with two children. The project design started from the intention of creating large rooms which comfortably would promote dialogue between the exterior and the interior of the residence, using an architectural language inspired by international style. The adopted party was guided by integration and spatial and visual flow between the indoor and outdoor areas, with a view to compliance with the bioclimatic conditions.
 © Maíra Acayaba
c.Maíra Acayaba
 Ground Floor Plan


 © Maíra Acayaba
c.Maíra Acayaba

 © Maíra Acayaba
c.Maíra Acayaba
在一个与地面限制墙平行的角落地段实施,目的是优化该地区的通风捕获,主要来自东南部。因此,房间的窗户向东和向南。同样,为了支持南部陆地边界的建设,将这一地点部署在游憩区,该项目有利于风的捕获和移动。

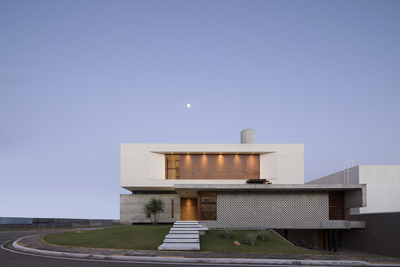

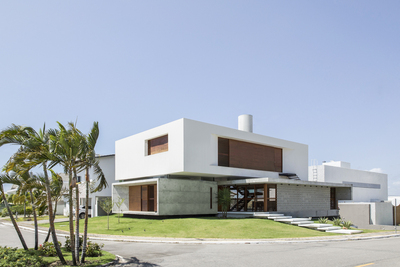

The implementation on a corner lot, parallel to the ground limitation wall, aimed to optimize the capture of ventilation in this region comes predominantly from the southeast. Thus, the windows of the rooms are oriented to the east and south. Likewise, to back the construction of the southern land border, deploying this site the recreation area, the project favored the capture and movement of winds.
The implementation on a corner lot, parallel to the ground limitation wall, aimed to optimize the capture of ventilation in this region comes predominantly from the southeast. Thus, the windows of the rooms are oriented to the east and south. Likewise, to back the construction of the southern land border, deploying this site the recreation area, the project favored the capture and movement of winds.
 © Maíra Acayaba
c.Maíra Acayaba
需求程序在三层楼的分布遵循空间相邻性的逻辑。因此,底层包括厨房、客人套房和社交区,其布置目的是在从大堂到美食的环境之间提供一种流畅的连接,通过客厅和就餐舒适地完成招待朋友和家人的任务。仍在地面上,为了保护家庭隐私,在土地后面租用了游憩区。

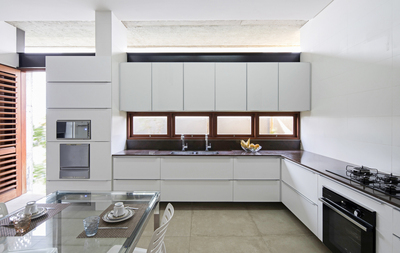

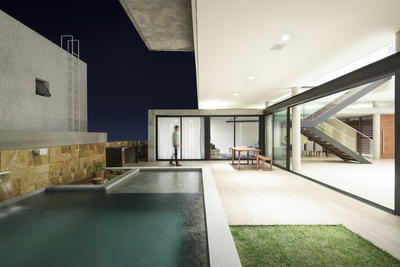

The distribution of the needs program in three floors follows the logic of contiguity of spaces. Thus, the ground floor comprises a kitchen, a guest suite and the social area, which was arranged to provide a fluid connection between the environments from the lobby to the gourmet, going through the living room and dining fulfilling comfortably the task of entertaining friends and family. Still on the ground, the recreation area was leased at the back of the land in order to protect the family's privacy.
The distribution of the needs program in three floors follows the logic of contiguity of spaces. Thus, the ground floor comprises a kitchen, a guest suite and the social area, which was arranged to provide a fluid connection between the environments from the lobby to the gourmet, going through the living room and dining fulfilling comfortably the task of entertaining friends and family. Still on the ground, the recreation area was leased at the back of the land in order to protect the family's privacy.
 © Maíra Acayaba
c.Maíra Acayaba
从人行道的水平的一楼的高度显示出建筑周围是平缓的斜坡,这是由于景观设计,其要素有助于缓解气候,并在建筑设计中融入了塑料。为了用户的舒适性,位于半地下室的车库允许两条通道进入大楼:一条通过服务区,也在这一层;另一条通过底层的正门。上层可容纳私密的起居区,包括三个套房,根据业主的要求,由一个免费的空间连接起来,该空间可以容纳一个图书馆。

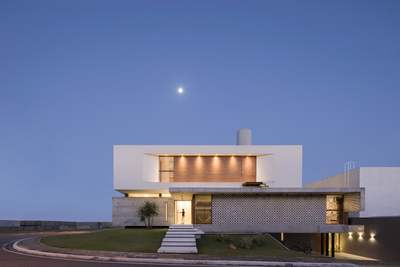

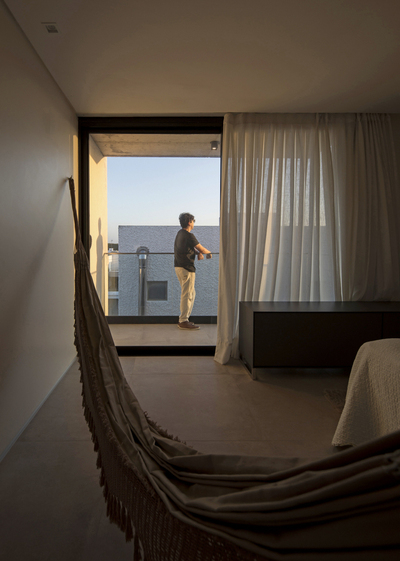

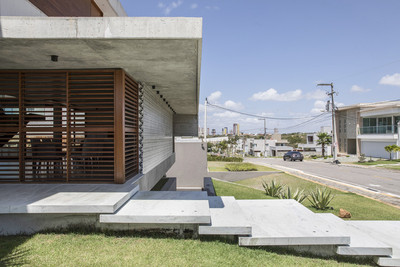

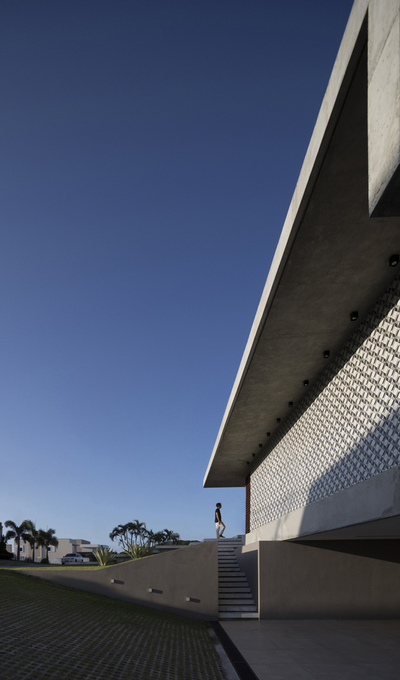

The elevation of the ground floor from the level of the sidewalk shows the building that is surrounded by gentle slopes, resulting from landscaping in which their elements contribute to climate mitigation and integrate plastically to architectural design. Aiming user comfort, the garage, located in the semi-basement, enables two accesses to the building: one through the service area, also on this floor; and another by the main entrance on the ground floor. The upper floor accommodates intimate living area, consisting of three suites connected by a free space that houses a library, given the owner's requirement.
The elevation of the ground floor from the level of the sidewalk shows the building that is surrounded by gentle slopes, resulting from landscaping in which their elements contribute to climate mitigation and integrate plastically to architectural design. Aiming user comfort, the garage, located in the semi-basement, enables two accesses to the building: one through the service area, also on this floor; and another by the main entrance on the ground floor. The upper floor accommodates intimate living area, consisting of three suites connected by a free space that houses a library, given the owner's requirement.

大孔径捕获了该区域的典型的通风,而大量的屋檐则保护了直射阳光的内部空间。在开口西侧的北面部和防晒罩上的双壁作业也是减轻内部热负荷的发生率的策略,其目的是为居民提供热舒适。纯几何形状的体积的相互作用产生大的摆动,以提供由铝、玻璃和木材中的系统框架提供的大的通风所渗透的阴影区域。

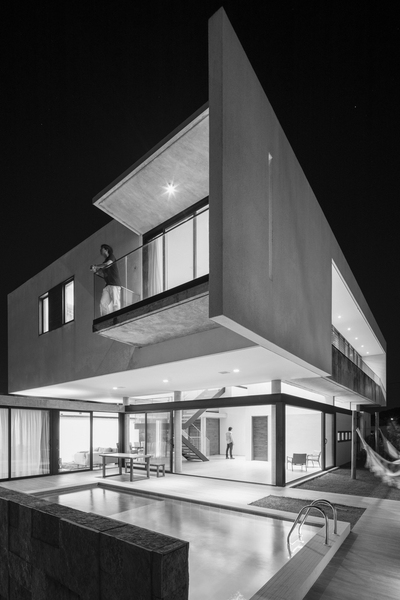

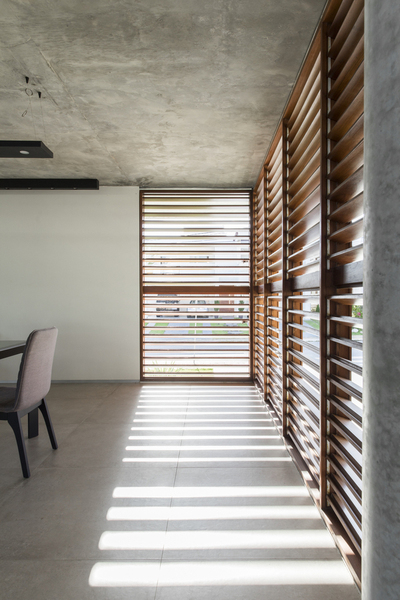

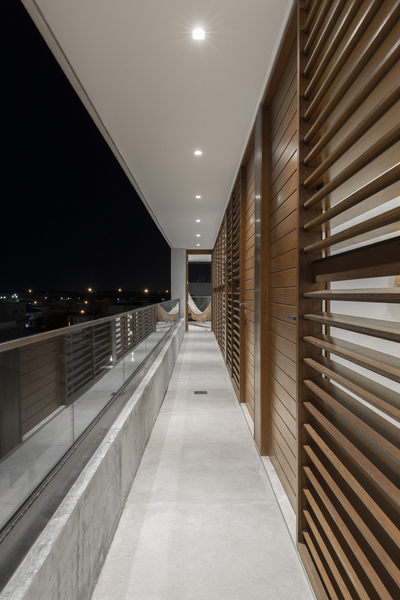

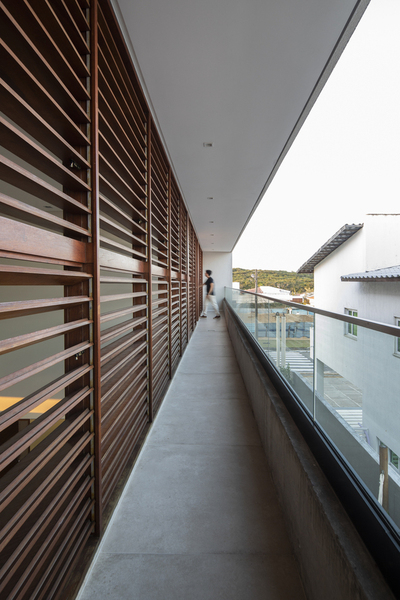

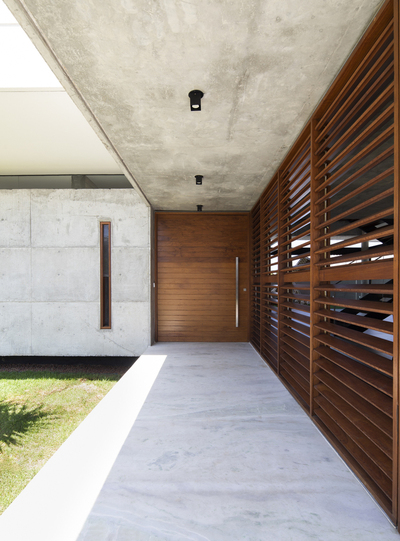

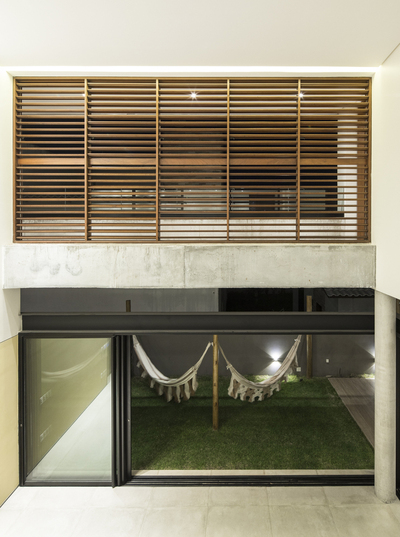

Large apertures capture the abundant ventilation typical of the region, while the large eaves that house terraces protect the internal spaces of direct sunlight. The double-wall job on the north face and sun protection shields on the west face of the openings are also strategies to mitigate the incidence of thermal load inside and aim to provide thermal comfort to residents. The interaction of the volumes of pure geometric forms give rise to large swings open to provide shaded areas permeated by large ventilation provided by the system frames in aluminum, glass and wood.
Large apertures capture the abundant ventilation typical of the region, while the large eaves that house terraces protect the internal spaces of direct sunlight. The double-wall job on the north face and sun protection shields on the west face of the openings are also strategies to mitigate the incidence of thermal load inside and aim to provide thermal comfort to residents. The interaction of the volumes of pure geometric forms give rise to large swings open to provide shaded areas permeated by large ventilation provided by the system frames in aluminum, glass and wood.
 © Maíra Acayaba
c.Maíra Acayaba
所采用的结构体系主要由柱、板和墙组成的表观混凝土,造型和排列的空间。选择钢筋混凝土的主要动机提供了更大的塑料自由,使楼层成为单独的体积,并保证了内部空间和大跨度的流动性。娱乐区内有一个覆盖着金属框架的框架,钢部分沿着房间延伸,扫描框架,以轻盈和优雅的方式促进完成。楼梯的上层也是使用金属型材设计,以确保一个细长的结构,只有两个点的支撑。

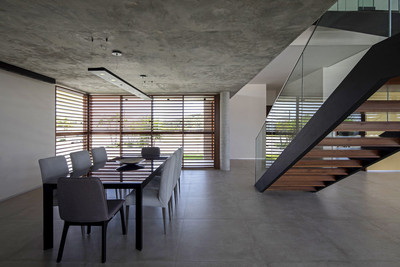

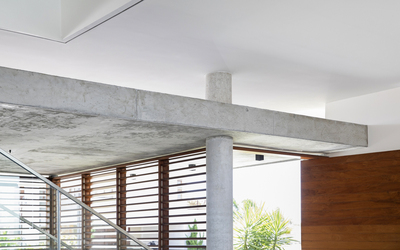

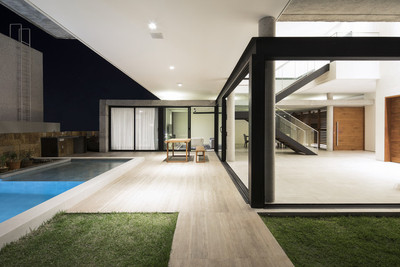

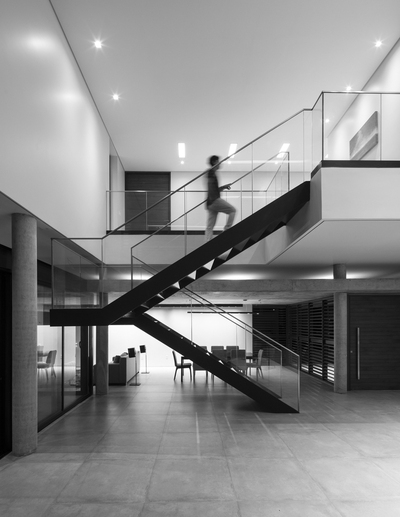

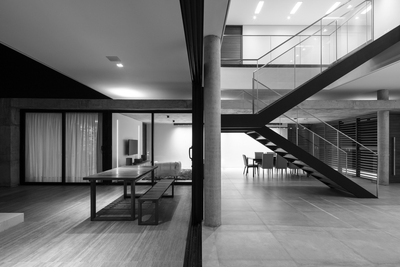

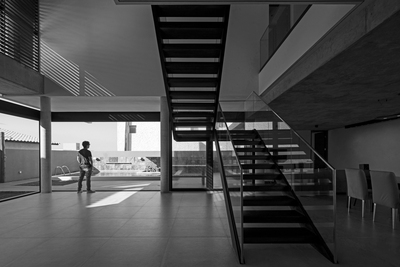

The adopted structural system consists largely of pillars, slabs and walls in apparent concrete, modeling and line the spaces. The main motivation of the choice of reinforced concrete gave greater plastic freedom, enabling the reading of the floors as separate volumes, and has guaranteed the fluidity of the internal spaces and large spans. The recreation area has received in a covered metal frame with steel sections that extend along the room, scanning the frames and promoting the finish with lightness and elegance. The stairs to the upper floor is also designed with the use of metal profiles in order to ensure a slender structure with only two points of support.
The adopted structural system consists largely of pillars, slabs and walls in apparent concrete, modeling and line the spaces. The main motivation of the choice of reinforced concrete gave greater plastic freedom, enabling the reading of the floors as separate volumes, and has guaranteed the fluidity of the internal spaces and large spans. The recreation area has received in a covered metal frame with steel sections that extend along the room, scanning the frames and promoting the finish with lightness and elegance. The stairs to the upper floor is also designed with the use of metal profiles in order to ensure a slender structure with only two points of support.
 © Maíra Acayaba
c.Maíra Acayaba
利用构成西面大面板的木材、液压瓦等材料,在游憩区内壁采用典型的石材,有利于当代语言与地域语言的对话。

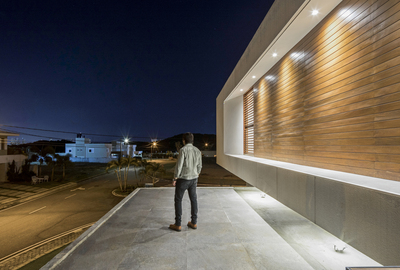

The use of materials like wood and hydraulic tile, which makes up the large panel of the west facade, and the use of typical stones of the region in the wall of the lining of the recreation area, favors dialogue between contemporary and regional language.
The use of materials like wood and hydraulic tile, which makes up the large panel of the west facade, and the use of typical stones of the region in the wall of the lining of the recreation area, favors dialogue between contemporary and regional language.
 © Maíra Acayaba
c.Maíra Acayaba

























































Architects Martins Lucena Arquitetos
Location Ponta Negra, Brazil
Team Márcio Lucena, Kleimer Martins, Tadeu de Brito, Tamáris Brasileiro, Deborah Barbosa, Kellington Dantas
Area 420.38 sqm
Project Year 2018
Photography Maíra Acayaba
Category Houses
